Guardrail Bolts and Nuts

Part of the Guardrail Accessories range · Highway Guardrail.

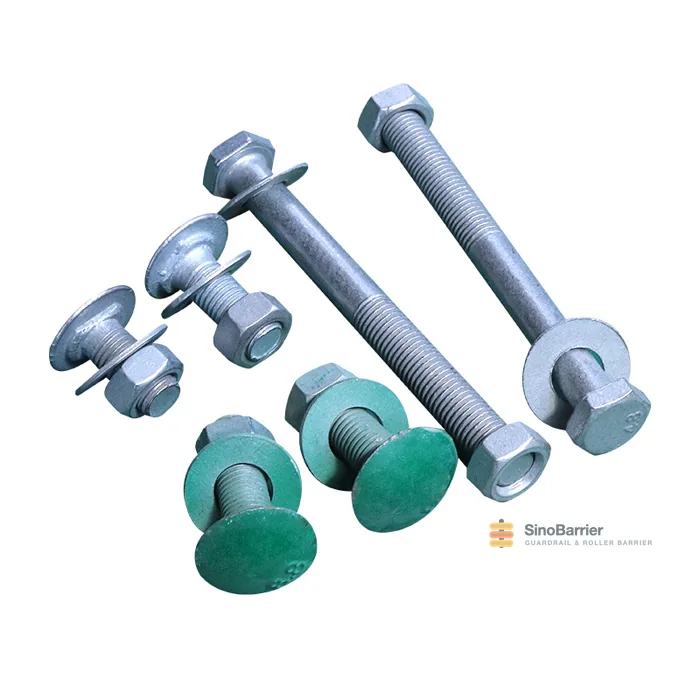

Model: Guardrail bolt and nut

Highway guardrail bolts and nuts are mainly used between guardrail and spacer, spacer and post, They play a fixed role. When the vehicle collides with it, the corrugated steel guardrail board has good crash worthiness and energy absorption, and it is not easy…

  • Standard ISO9001:2000
  • Material 1) Material: High quality carbon steel. Grade: 4.8, 5.8, 6.8, GR.2, A307.
  • Surface Part galvanization, Colorful galvanization, Army green galvanization, Black galvanization, Steam Black, Ash phosphorus, Brass, Nickel plate, Chrome plate, hot dipped galvanized, Zinc plated (yellow, black, green) or according to customers requirements.
  • Thickness 550g/m 2 (80µ),610g/m 2 (85µ), 1100 g/m 2 (160µ), 1200 g/m 2 (170µ), according to consumers’ request
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

SpecificationDetailed introduction
ProfileGuardrail Bolt and Nut
Materials Grade1) Material: High quality carbon steel. Grade: 4.8, 5.8, 6.8, GR.2, A307.
2) Material: Alloy steel :20MnTiB ,40Cr , 42CrMo. Grade:8.8,10.9,12.9 ,GR.2,GR.5,GR.8, A325-1,A490-1 ,GR.B7,GR.B7M.
3) Material: stainless steel :302 ,304 , 305 ,316,304L ,316L ,410,430,carbon steel. Grade: A2-50 ,A4-50 , A2-70 ,A4-70 , GR.B8,GR.B8M.
Normal SizeSize:M16-M64 Length range:40mm-460mm, as customer’s requirements
Surface treatmentPart galvanization, Colorful galvanization, Army green galvanization, Black galvanization, Steam Black, Ash phosphorus, Brass, Nickel plate, Chrome plate, hot dipped galvanized, Zinc plated (yellow, black, green) or according to customers requirements.
The thickness ofgalvanized550g/m 2 (80µ),610g/m 2 (85µ), 1100 g/m 2 (160µ), 1200 g/m 2 (170µ),  according to consumers’ request
Featureshigh intensity,Great corrosion resistant, etc.
CertificationISO9001:2000
StandardsDIN931/933/912/DIN603, ASTM, JIS, BSW, Nonstandard bolt (according to your order) and etc.
Packing25kgs per carton, 40 cartons per pallet; or 50kgs per gunny bag, 20bags per pallet; or as to customers’ requirement.
Ordering requirementsOther special specification as per client’s requirement or drawings

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

Highway guardrail bolts and nuts: where they are used

Guardrail bolts and nuts are the fixings that tie a barrier together: they hold the beam to the block, the block to the post, and the post to the next length of rail. A run contains thousands of them, and a single under-torqued set can let a joint open on impact, so the grade and the coating matter as much as the count. They are supplied for W-beam, thrie-beam and box-beam assemblies, in the standard sizes for each connection.

How the fixing behaves in a crash

The bolts carry the load from the rail into the post and keep the beam at the offset the block sets. In a crash the joint has to hold long enough for the rail to bend and absorb the energy, so the bolts are sized for the shear and the pull-out the assembly sees, not just for assembly. A galvanized bolt also has to resist corrosion, because a rusted fixing is one that will not come apart for repair.

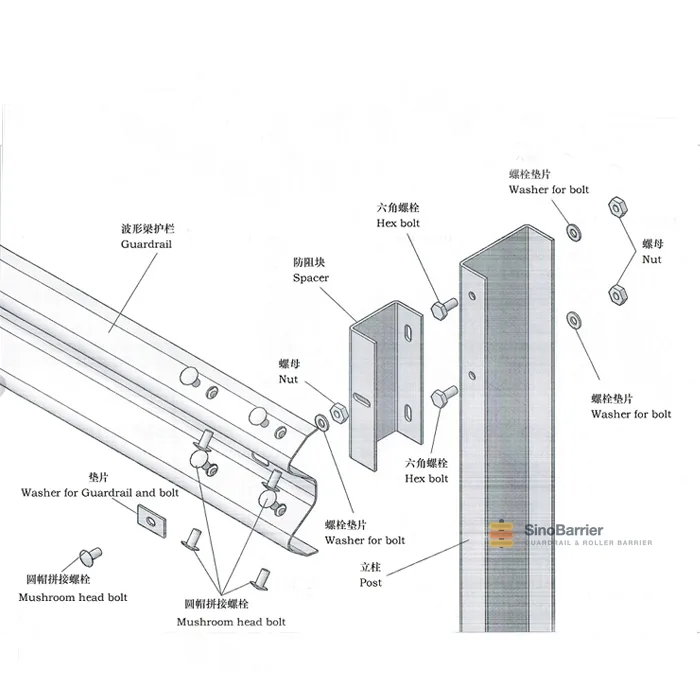

Guardrail bolt and nut assembly drawing

Grades, sizes and coating

The bolts are supplied in the standard metric and imperial sizes for guardrail work, with the matching nuts and washers, and hot-dip galvanized to resist weathering. The thread length and the head form are matched to the connection so the bolt does not bottom out before the joint is tight. We supply the full set for a run: beam bolts, block bolts, post bolts, nuts and washers.

Standards, sizes and ordering

Guardrail bolts and nuts are supplied to AASHTO M180 and the matching coating standards, in the sizes your assembly uses. Send the bolt list, the grade and the coating and we quote from our own works; the fixings can be shipped with the beams, posts and blocks as one package for the run.

Frequently asked questions

What grades of guardrail bolts can you supply?
Carbon steel in grades 4.8, 5.8, 6.8, GR.2 and A307; alloy steel 20MnTiB, 40Cr and 42CrMo in 8.8, 10.9, 12.9, GR.2, GR.5, GR.8, A325-1, A490-1, GR.B7 and GR.B7M; and stainless steel 302, 304, 305, 316, 304L, 316L, 410 and 430 in A2-50, A4-50, A2-70 and A4-70.
What sizes are available?
M16 to M64, with a length range of 40 mm to 460 mm. The size and length are chosen from the connection itself, whether that is beam to block, block to post or post to rail, and supplied to your requirement rather than from a limited stock list.
How are the fixings coated?
Hot-dip galvanized from 550 g/m² (80 µm) up to 1200 g/m² (170 µm), plus part galvanizing, colour galvanizing, army green, black, steam black, ash phosphorus and zinc plating. The coating class follows the beam and the posts so the joint weathers as one assembly.
Why does the bolt grade matter so much?
A run contains thousands of fixings and a single under-torqued set can let a joint open on impact, so the grade and the coating matter as much as the count. Grade 8.8 bolts with hot-dip galvanized nuts and washers are the standard for this system.
