Highway Guardrail & Roller Barrier Products

Every component of a roadside safety system from one factory: W-beam and thrie-beam sections, posts, spacers, end terminals, accessories, and MASH-tested roller barrier units. Supplied hot-dip galvanized to AASHTO M180 with mill certificates.

Highway Guardrail

Highway guardrail systems assembled from beam and post — W-beam and thrie-beam sections, posts, spacers, end terminals and the fastener package. Hot-dip galvanized to AASHTO M180, drawn to your standard.

Galvanized W-Beam Guardrail
W-Beam Guardrail

Galvanized W-Beam Guardrail

Model: W-Beam / 308–315 mm

Galvanized W-beam panels for roadside barrier systems. Send your approved drawing to confirm dimensions, steel grade, hole pattern,…

View details
Thrie-Beam Guardrail
Thrie-Beam Guardrail

Thrie-Beam Guardrail

Model: Thrie-Beam / 506 / 508 / 510 mm

Thrie-beam panels have three corrugations and a deeper profile than W-beam panels. Confirm panel dimensions and matching components…

View details
Square Guardrail Post
Guardrail Post

Square Guardrail Post

Model: Square post 130 × 130

A square guardrail post is a square hollow section post for high-speed alignments: a galvanized square guardrail post…

View details

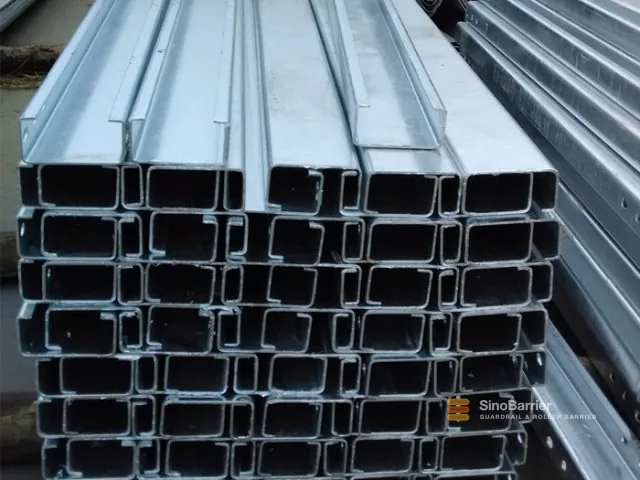

C Shape Guardrail Post
Guardrail Post

C Shape Guardrail Post

Model: C post

The C channel guardrail post is the standard lipped-channel post for W-beam barriers — rolled, punched and hot-dip…

View details

All Highway Guardrail

Roller Barrier

Rotating safety roller barriers for the locations where a fixed beam cannot absorb the energy: sharp curves, tunnel portals, median openings and gantries.

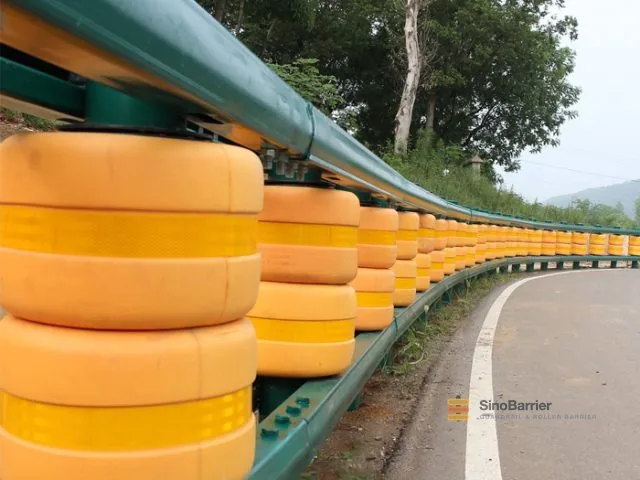

Safety Roller Crash Barrier
Safety Roller Crash Barrier

Safety Roller Crash Barrier

Model: H250 × φ350 roller

Safety roller crash barrier for road projects. Review roller sizes, posts, rails and connectors, then confirm the barrel…

View details

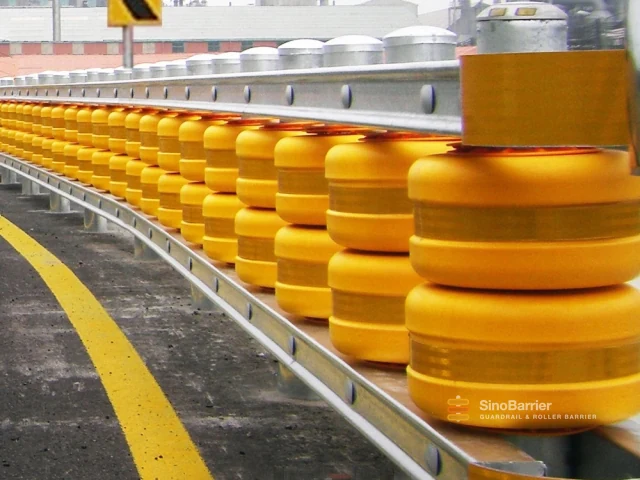

Rotary Crash Barrier
Safety Roller Crash Barrier

Rotary Crash Barrier

Model: H250 × φ350 roller

The rotary crash barrier is the coupled-roller edition of the same principle: EVA barrels on a hot-dip galvanized…

View details

All Roller Barrier

Frequently asked questions

Which parts of a guardrail system can I order here?
Everything that goes into the run: W-beam and thrie-beam sections, posts and spacers, end terminals, post caps, reflectors, bolts and washers, and MASH TL4 roller barrier units. Each product page lists the profile, coating classes, standard lengths and the matching post and fittings, so a bill of quantities can be priced line by line instead of being split between suppliers.
Can I load several products in one container?
Yes. A 20GP container is loaded as one mixed order — beams, posts, spacers, terminals and fasteners together — and the quotation comes back with a loading plan so you can see what fits before you commit. One container is the minimum order: about 25 tonnes of beam, or a mixed load of the same total weight.
Which standards and coating classes are available?
Beams and posts are hot-dip galvanized to AASHTO M180 with a 550 g/m² minimum, and profiles are cold-rolled to AASHTO M180, EN 1317 and GB/T 31439. Heavier coatings of 610, 1100 and 1220 g/m², and national standards such as AS3845 and GOST 26804, are produced to order. Roller barrier units are verified to MASH TL4.
How do I match a beam to the right post and terminal?
W-beam — Panel length: 2320 / 3320 / 4128 / 4130 / 4318 / 4320 / 7938 mm; Section width: 308 / 310 / 311 / 312 / 315 mm; Base metal thickness: 2.5 / 2.6 / 2.67 / 2.7 / 2.75 / 2.76 / 2.8 / 3 / 4 / 5 / 10 mm; Nominal base thickness: Class A: 2.67 mm; Class B: 3.43 mm. Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification. Thrie-beam — Panel length: 4120 × 506 × 85 mm / 7920 × 506 × 85 mm; Section width: 506 / 508 / 510 mm; Base metal thickness: 2.76 / 2.8 / 3 / 4 / 4.5 / 5 / 10 mm; Nominal base thickness: Class A: 2.67 mm; Class B: 3.43 mm. Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification.
What is the lead time for a catalogue order?
15 to 25 days after deposit for a full container, covering rolling, galvanizing, packing and inland transport to the port. An order that repeats an earlier specification clears at the short end, because the rolls and drilling jigs are already set. Every shipment leaves with mill certificates, coating weight records, a packing list and setting-out drawings.
Are fasteners and accessories included with the beams?
Bolts, washers, reflectors and post caps are quoted with the beams and packed by set rather than by weight, so the site is not left short of one component. Terminals, spacers and blockouts are matched to the beam profile and shipped in the same container. If the tender calls for a different bolt grade or coating, it is produced to that clause.
Package pricing

Buy the whole roadside package from one factory

Beams, posts, spacers, terminals, bolts and reflectors consolidated into one container. Send your bill of quantities and we will return a take-off with the quotation.

We reply within one working day. Your details stay with our sales team only.

Need a quotation for your next highway project?

Send the drawing, the bill of quantities or just the standard you are building to. We return a take-off, a shop drawing and a factory price within one working day.
