Model: Guardrail washer

The guardrail washer sits under the bolt head on every beam-to-post connection, spreading the load across the slotted hole so the section is not crushed as the bolts are torqued down. Washer for guardrail and bolt, Secure the bolts to the guardrail Highway guardrail bolts and nuts are mainly used between guardrail and spacer, spacer and post, They play a fixed role When the vehicle collides with it, the corrugated steel guardrail board has…

  • Standard AASHTO M180 / EN 1317
  • Material Q235B / Q345B steel
  • Surface Hot-dip galvanized, ≥ 550 g/m²
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

ProfileGuardrail Washer
MaterialQ235B / Q345B steel (S235JR / S355JR / ASTM A529M)
Surface treatmentHot-dip galvanized; powder or PVC coated on request
Zinc coating≥ 550 g/m² (≈80 µm), AASHTO M180
StandardAASHTO M180 / EN 1317 / GB/T 31439
CertificateMill test certificate and coating weight report with every shipment
NoteCustom length, hole pattern and coating weight produced to your drawing.

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

Guardrail washer: where it is used

The guardrail washer sits under the nut or the bolt head and spreads the clamping load over a wider area of the beam or the block. It is a small part, but it is what stops a bolt pulling through a slotted hole and what keeps the joint tight under traffic vibration. Washers are supplied for every guardrail connection, in the sizes that match the bolts used on the run.

What the washer does

A washer spreads the load of the bolt over a larger area of steel and protects the surface of the beam or block from being marked by the nut. On a slotted guardrail hole, where the beam has to be able to slide, the washer is also what stops the bolt head or nut pulling through the slot. A galvanized washer keeps the joint free of rust, so the barrier can still be repaired after years in service.

Guardrail washer and bolt fixing detail drawing

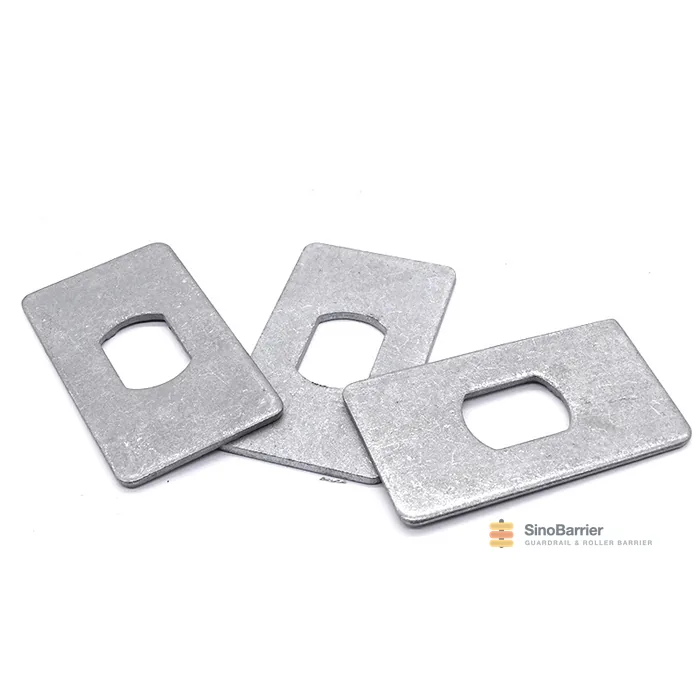

Galvanized guardrail washers

Types and coating

Flat and spring washers are supplied to suit the bolt sizes used on guardrail assemblies, in the standard metric and imperial threads. The washers are hot-dip galvanized with the rest of the fixing set, so the coating weight matches the bolts and the nuts. Tell us the bolt size and we supply the matching washer with the fixing package.

Standards, sizes and ordering

Guardrail washers are supplied to the AASHTO M180 coating standard and the matching bolt sizes, in the quantities a full run needs. Send the bolt list and the quantity and we quote from our own works; washers are normally shipped with the bolts, nuts and the rest of the run as one order.

Frequently asked questions

What does the guardrail washer do?
It sits under the nut or the bolt head and spreads the clamping load over a wider area of the beam or the block. It is a small part, but it is what stops a bolt pulling through a slotted hole and what keeps the joint tight under traffic vibration.
Do you supply washers for every connection?
Yes. Washers are supplied for every guardrail connection, in the sizes that match the bolts and the hole pattern, and they are hot-dip galvanized to the same class as the beam, the block and the post.
What material and coating are used?
Steel to the grade the fixing specifies, hot-dip galvanized with a minimum 550 g/m² coating to AASHTO M180, or powder or PVC coated on request. The standard is AASHTO M180 / EN 1317 / GB/T 31439.
Does the washer grade have to match the bolt?
It should. The washer is part of the fixing, so its grade and coating are matched to the bolt and nut in the same kit, which is how the joint behaves as one item rather than as loose parts.
