Highway Guardrail

Guardrail End Terminals

Bridge, buffer, fishtail, flared and bullnose terminals that anchor the end of a barrier run instead of leaving a raw section.

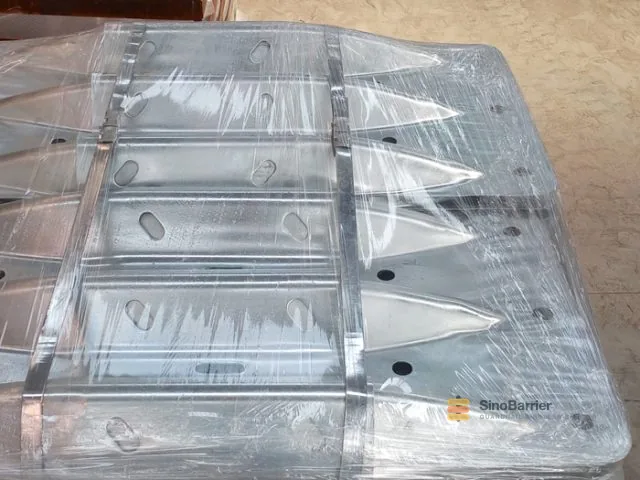

Bridge End Terminal
Guardrail End

Bridge End Terminal

Model: Bridge end terminal

Compared to fish tail shape ends, it features holes in the end for convenient bolting the terminal firmly…

View details
Buffer End Terminal
Guardrail End

Buffer End Terminal

Model: Buffer end terminal

Double Terminal End, also known as Buffer End, are mounted on road bends or median strips. the roadway…

View details

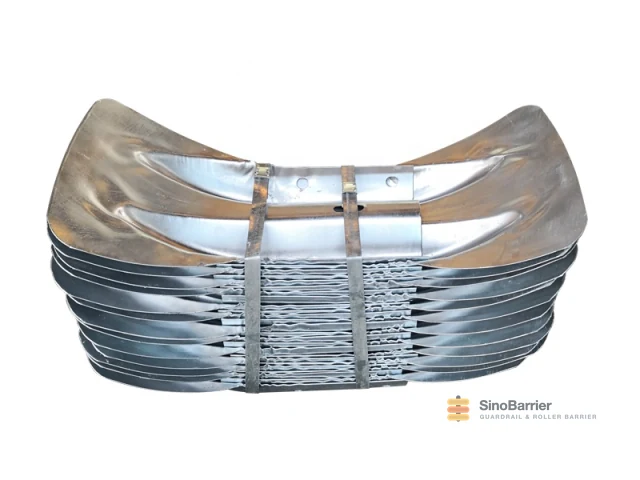

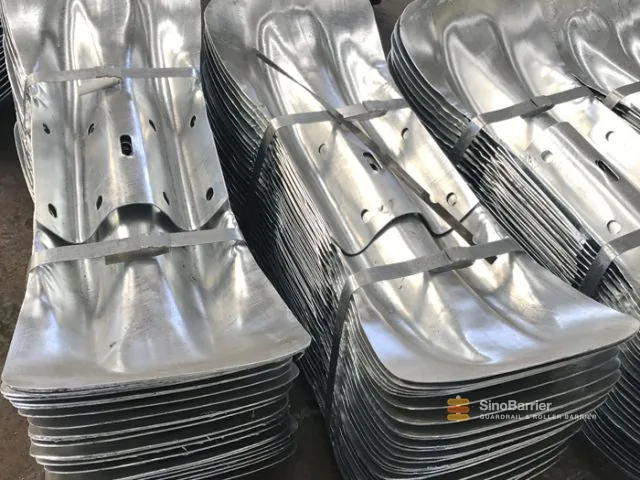

Fishtail End Terminal
Guardrail End

Fishtail End Terminal

Model: Fishtail end terminal

The fishtail end terminal is a flared, energy-absorbing end treatment that turns the start of a W-beam run…

View details

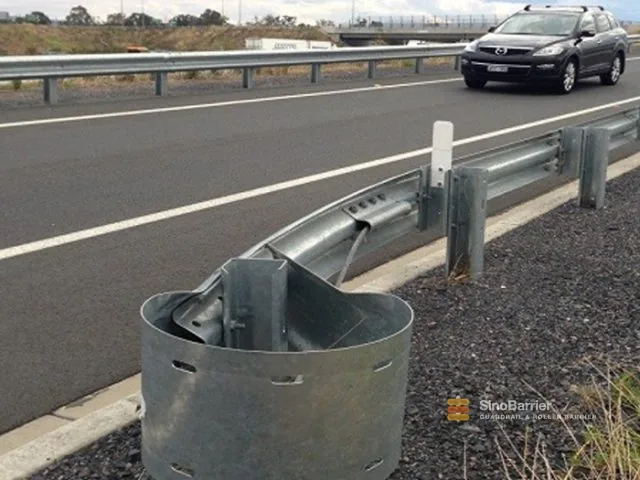

Bullnose End
Guardrail End

Bullnose End

Model: Bullnose end terminal

A bullnose end terminal rounds off the start of a guardrail run so it can be struck head-on…

View details

Why the end of a barrier run is the dangerous part

A guardrail that simply stops is a hazard in itself. An untreated rail end presents a cut section at driver height, and a vehicle that leaves the carriageway there can be speared or launched rather than redirected. Every barrier run therefore ends in a terminal designed to do one of two things: absorb the impact energy progressively, or turn the rail down and away from the traffic face.

We manufacture the full terminal range — bridge, buffer, fishtail, flared and bullnose — to suit the profile at the end of the run. Terminals are hot-dip galvanized to the same AASHTO M180 550 g/m² minimum coating class as the beam, so the coating specification does not change where the terminal begins.

Guardrail end terminal specification

TypesBridge end, buffer end, fishtail, flared end, bullnose
Fishtail sectionStandard and crash-barrier variants
Bullnose thickness2.75 mm / 2.85 mm / 3.75 mm / 3.85 mm / 4.0 mm
Steel gradeQ235B (S235JR), Q345B (S355JR)
CoatingHot-dip galvanized, 550 g/m² minimum
MatchingProduced to the beam profile used on the run
StandardsAASHTO M180, EN 1317, GB/T 31439
MOQ1 × 20GP container
Lead time15–25 days after deposit

Which terminal for which location

  • Bridge end terminals — anchor the rail where the run meets a bridge parapet or an abutment, so the two structures hand over load instead of colliding.
  • Buffer end terminals — absorb energy at the end of a run in an open location.

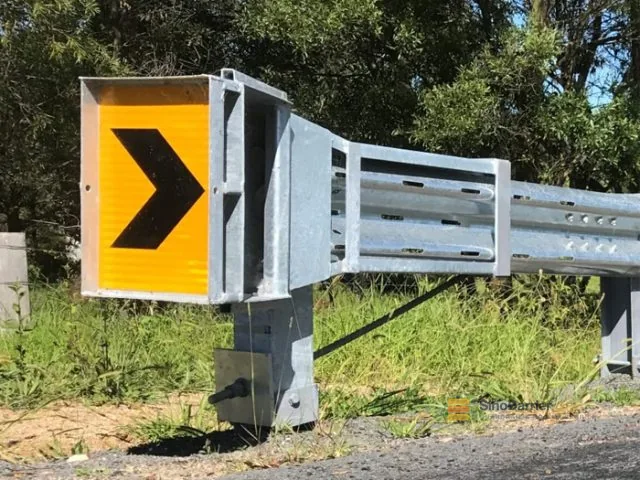

  • Fishtail and flared ends — turn the rail down and away so the end is below bumper height.
  • Bullnose ends — a rounded, redirective treatment for run ends exposed to traffic from more than one direction, such as median openings.

Terminals are quoted with the run rather than afterwards, because the correct end depends on the profile, the approach direction and what lies behind the termination.

Ordering information

Send the drawing and tell us which beam profile the terminal has to match, and which direction the traffic approaches from. We will confirm the type and return a take-off and a factory price, normally within one working day. Certificates to EN 10204 3.1 ship with the order.

Frequently asked questions

Can a barrier run simply stop without a terminal?
It should not. A bare rail end sits at driver height and can spear or launch a vehicle rather than redirect it. Every run should end in a terminal that either absorbs the impact or turns the rail down and away from the traffic face.
How do I know which terminal suits my run?
It depends on the beam profile, the direction traffic approaches from and what sits behind the termination. Send the drawing and we will match the type — bridge, buffer, fishtail, flared or bullnose — and quote it with the rest of the run.
Are terminals galvanized to the same class as the beam?
Yes. Terminals go through the same hot-dip line to a 550 g/m² minimum to AASHTO M180, so the coating specification and the certificate cover the whole run including its ends.
Do you supply bullnose ends for median openings?
Yes. Bullnose ends are the usual treatment where the end of a run is exposed to traffic from more than one direction, such as a median opening, because they are redirective from either approach.

Specifying this product for a project?

Send the drawing or the tender clause. We will confirm the section, the coating weight and the post spacing, then return a take-off and a factory price — usually within one working day.
