Guardrail Post

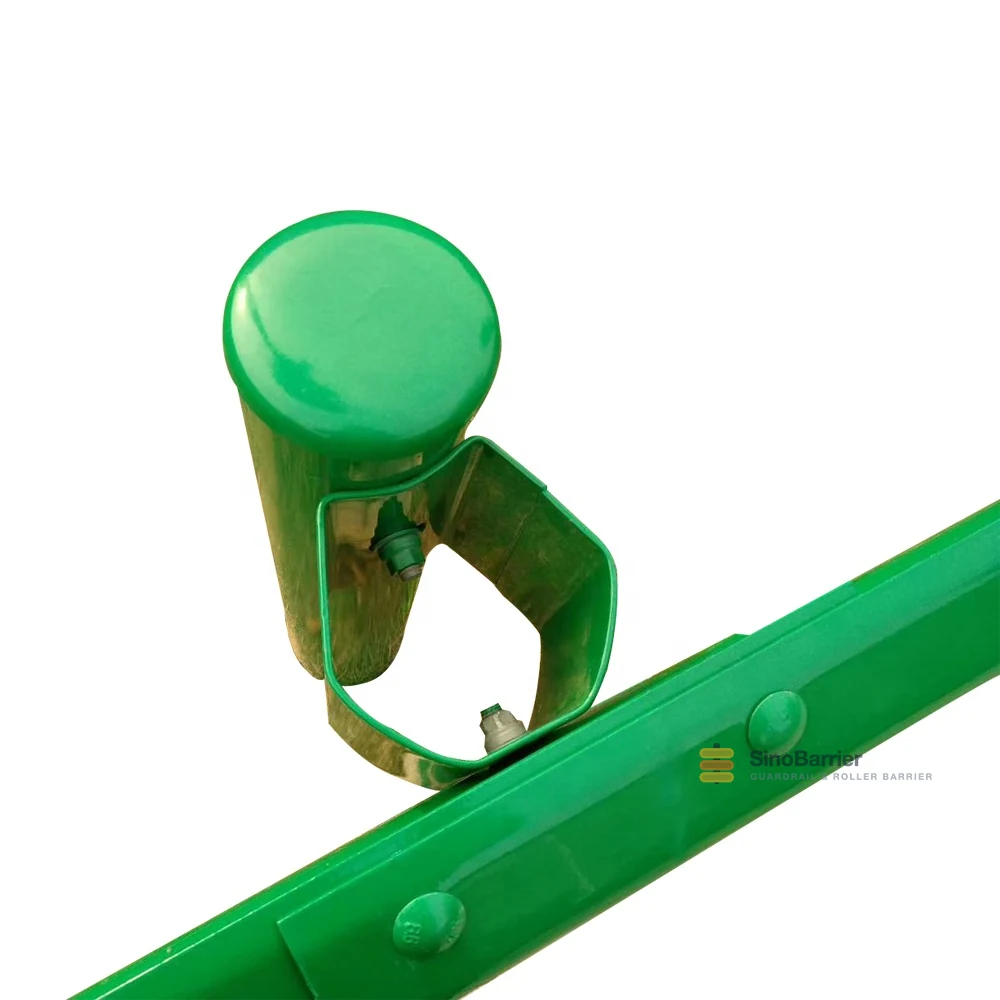

Round Post for Hot-Dip Galvanized Guardrail

Part of the Guardrail Post range · Highway Guardrail.

Model: Round post

This galvanized round guardrail post is the circular-section alternative to a standard C-post, hot-dip galvanized to AASHTO M180 and supplied with the holes and cap your drawing calls for. Products Description Hot Dip Galvanized W Beam Highway Guardrail Highway Guardrails are specified in major highways and roads projects as safety barrier. The Guardrail system Guardrail system absorbs the impact of out-of-control vehicles while guiding the…

  • Standard AASHTO M180 / EN 1317
  • Material S235JR/S355JR/ASTM A283M/529M
  • Surface Hot Dipped Galvanized Powder Coated
  • Thickness 550g(80µ) 610g (85µ) 1100 g(160µ) 1200 g/㎡ (170µ) according to consumers’ request
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

SpecificationDetailed introduction
NameRound post
MaterialsS235JR/S355JR/ASTM A283M/529M
Surface TreatmentHot Dipped Galvanized Powder Coated
The thickness of galvanized550g(80µ)  610g (85µ) 1100 g(160µ)  1200 g/㎡ (170µ) according to consumers’ request
Normal Size1750*114*4.5 /2250*140*4.5
TechniqueCold Rolled

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

Round post for hot-dip galvanized guardrail: where it is used

A round post for a hot-dip galvanized guardrail is the tubular post that carries the beam in many Asian, Middle Eastern and municipal specifications. Being circular, it has no flat face to trap water and no sharp edge, and it behaves the same whichever side takes the load, so it is a natural fit for roadside runs, car parks and perimeter barrier. The galvanized finish is what lets the post survive decades of weather in these markets.

Rolling and galvanizing the post

The post is formed from steel pipe or from strip rolled into a closed section, then hot-dip galvanized inside and out, so the coating reaches the bore as well as the outside. Galvanizing after fabrication means the drilled holes and the cut ends are coated too, which is what stops rust starting at a fixing. We hold the section, the wall thickness and the coating weight to the specification your project names.

Fixing the post and the beam

One end of the round post is connected to the guardrail plate by bolts, nuts and connectors, and the other is driven into the ground or set in concrete, depending on the foundation design. The post is drilled to the connector and beam pattern, so the assembly goes together without reaming on site. We can supply the posts with the beams, the connectors and the bolts as one package.

Standards, sizes and ordering

These round guardrail posts are produced to AASHTO M180 and hot-dip galvanized, or to your own specification, in the section and wall thickness you need. Send the diameter, length, hole pattern and coating weight and we quote from our own mill; a sample post can be sent if you want to check the section before ordering.

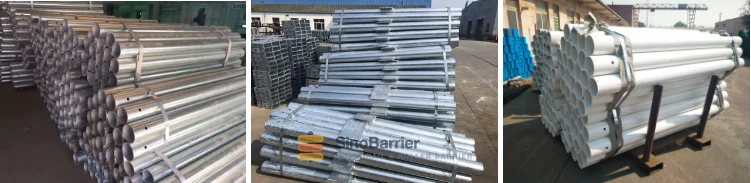

Galvanized guardrail posts stacked at the factory

Guardrail post, as a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs.

Additionally, it features a long service life due to its anti-rust and corrosion resistant characters, which proceed from its superior zinc coating or PVC coating According to the place of your intended application, we provide guardrail posts with or without flange plates. Generally, the post without flange plate is mostly fixed to soft soil by post anchors. But if you want to fix it on the concrete road, the post with plate is your best choice for easy installation: Just fasten the post to your desired place with bolts.

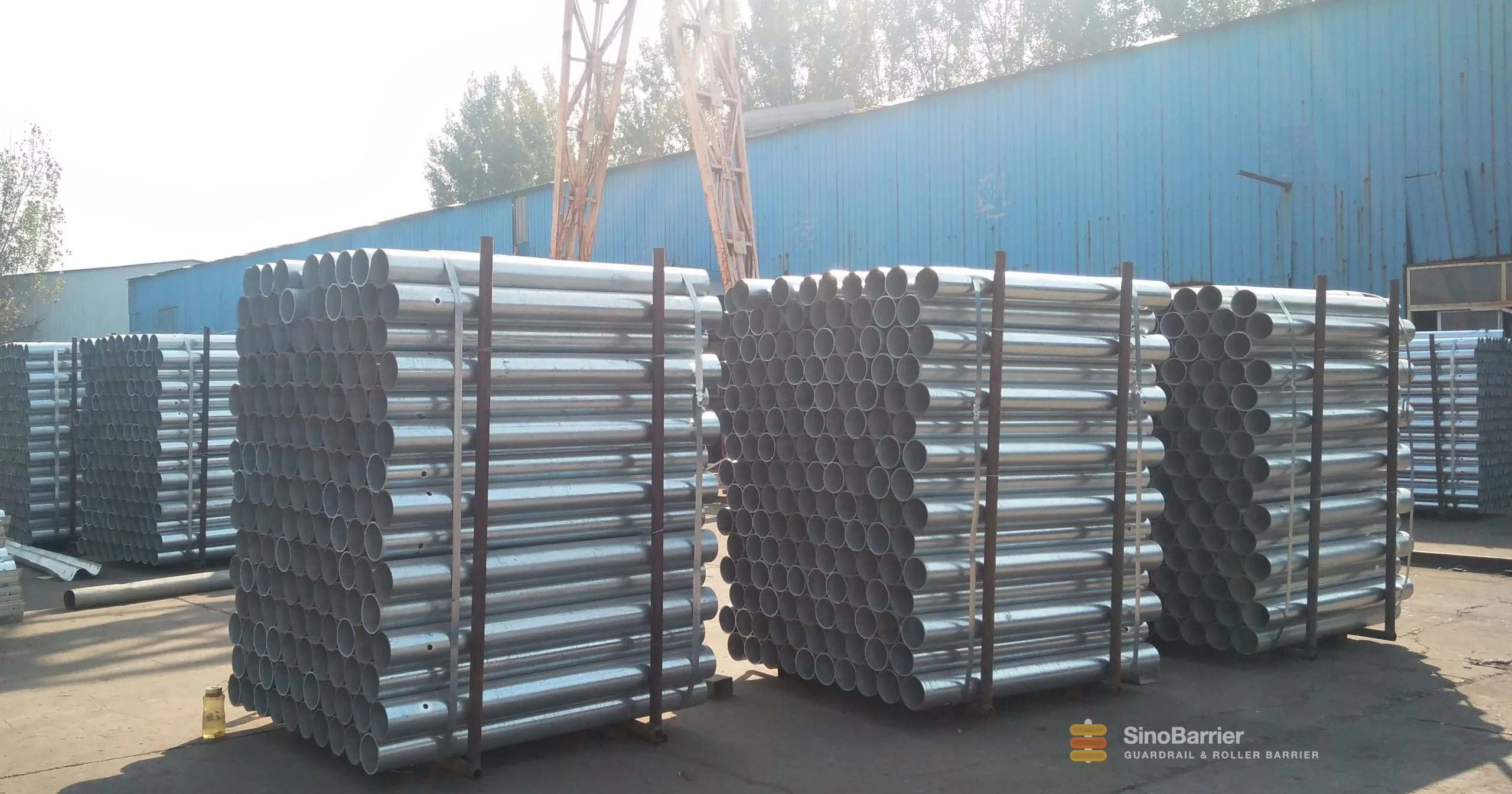

Hot-dip galvanized round guardrail posts

The Round post is the most common kind of highway guardrail post. It is made of steel pipe through cutting, punching and surface treatment. It has the advantages of simple production process, low cost and convenient maintenance and replacement.

One end of the Round post is connected to the guardrail plate by bolts, nuts and connectors, and the other end is embedded in the earth or fastened to the road surface by flannel, thus playing a supporting role and effectively preventing vehicles or pedestrians from rushing out.

Product parameters

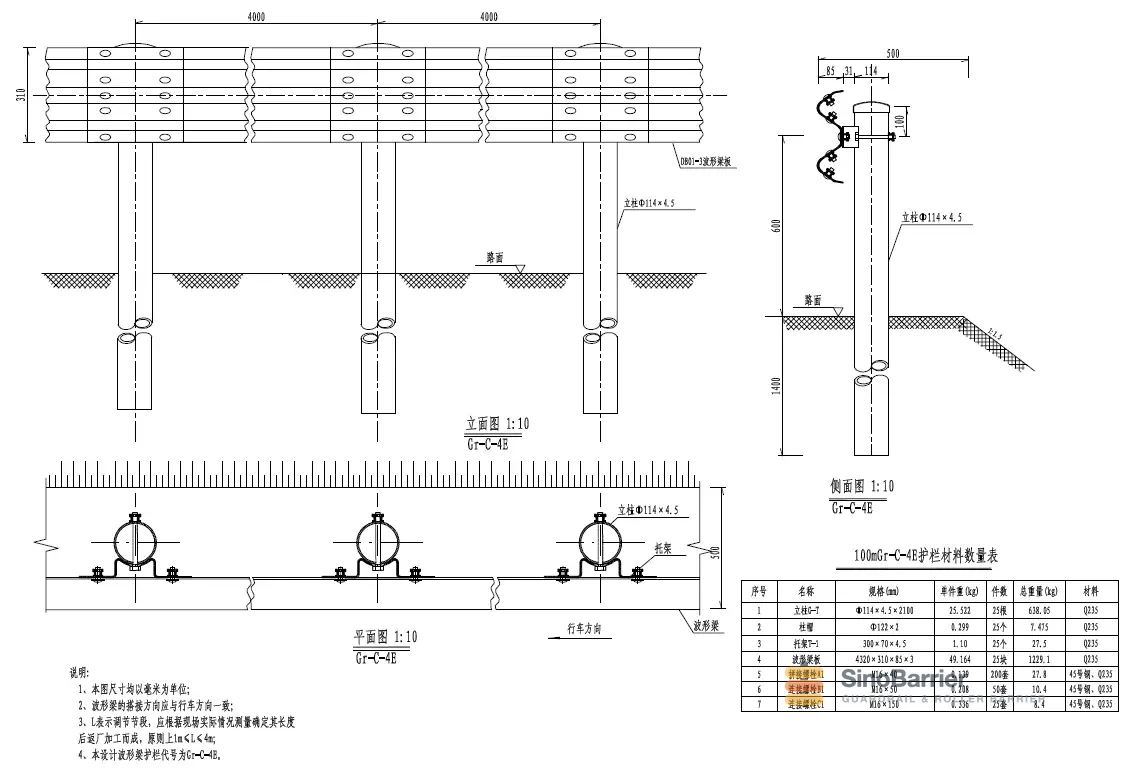

Round guardrail post dimensions and embedment drawing

Our Advantages

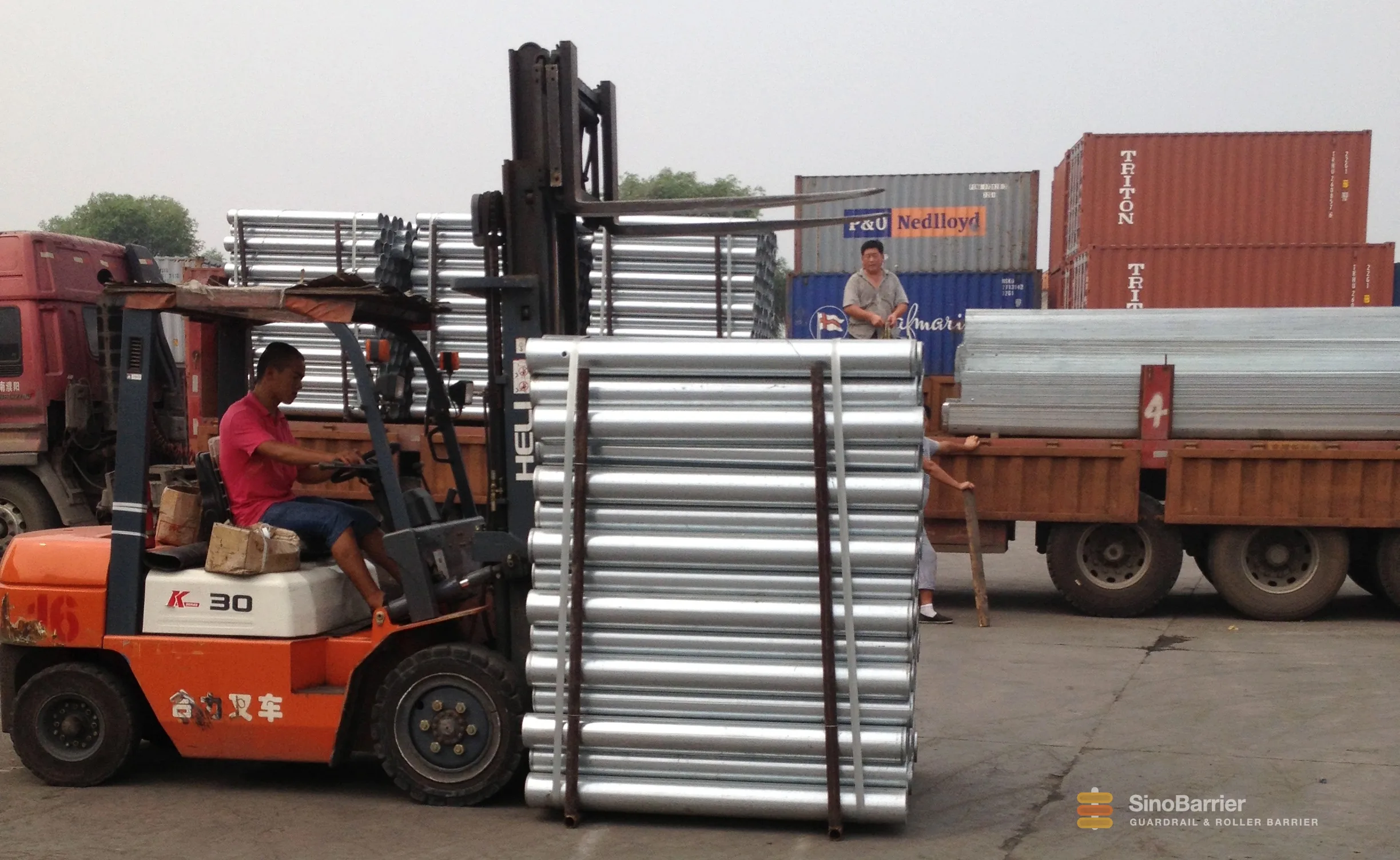

Forklift loading galvanized guardrail posts into a container

Can be applied in the following situations:

  • Road/Expressway/Highway Guardrails.
  • Roadway guard rails crash barriers;
  • Roadway crash barriers;
  • Service roads;Car parking lot guardrails;
  • Car parking guardrails;
  • Warehouses;
  • Distribution depots;
  • Industrial barriers;
  • Pedestrian areas;
  • Bridge guardrail.

Available with many various popular Standards:

  • AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail – USA)
  • AS/NZS 3845:1999(Road Safety Barrier Systems – Australia/New Zealand)
  • BS EN-1317(Road Restraint Systems – Europe)
  • JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail – China)
  • Or tailor-make according to client’s requirements

Frequently asked questions

What are the standard round post sizes?
The two sizes we roll most are 1750 × 114 × 4.5 mm and 2250 × 140 × 4.5 mm, given as post length, outside diameter and wall thickness. Both are produced in the steel grade your beam specifies, hot-dip galvanized, with the holes cut to your beam and bolt spacing.
Why use a round post rather than a C or H section?
A circular section has no flat face to trap water and no sharp edge, and it behaves the same way whichever side takes the load, which suits roadside runs, medians and municipal work. Being tubular it is also simple to drive or to concrete in, and it takes a cap cleanly.
How deep should the round post be set?
The embedment follows the design. The 1750 mm post is a driven or shallow-embedded detail and the 2250 mm post is used where a deeper set is required or the ground is weaker. Send the ground condition and the barrier class and we will confirm the length rather than leave it to the site.
Are the post holes drilled or slotted?
Either. Slotted holes absorb thermal movement along the run and make field alignment easier on a long barrier, while drilled holes are used where the fixing is fully specified. Both are cut before galvanizing, so the hole edges carry the coating.

Key features

  • C, U, Sigma, H, flange, square and round profiles in one factory
  • Steel grade Q235B / Q345B (S235JR / S355JR / ASTM A529M)
  • Hot-dip galvanized to AASHTO M180, minimum 550 g/m² coating
  • Drilled or slotted holes cut to your beam and bolt spacing
  • Cut to length, chamfered and de-burred before galvanizing

Where it is used

  • Beam-and-post barrier runs
  • Soil, asphalt and concrete embedment
  • Bridge decks and abutments
  • Rock and hard-ground sites
  • Median and shoulder installations
  • Guardrail repair and replacement

Complete the system

A barrier is supplied as a set. These are the components that go with this item on a typical installation.

Not sure which specification fits?

Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
