Guardrail Post

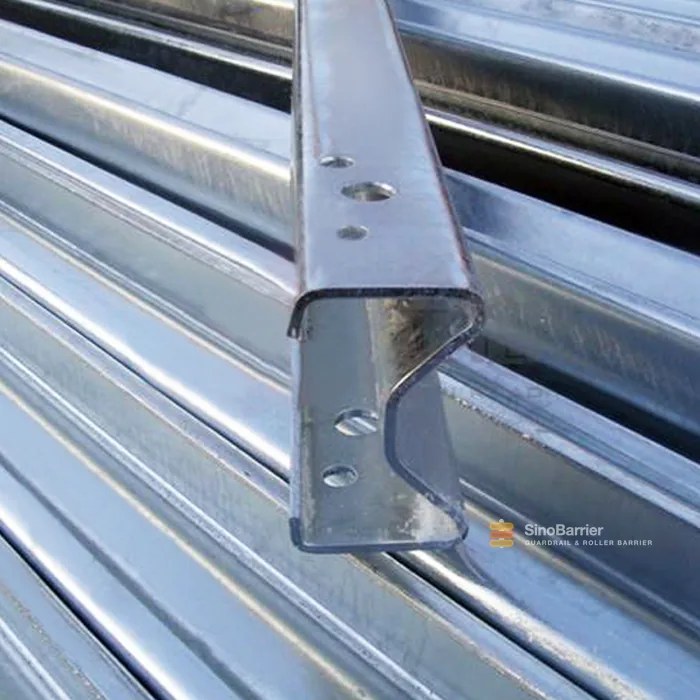

Sigma Shape Guardrail Post

Part of the Guardrail Post range · Highway Guardrail.

Model: Sigma post

The sigma guardrail post is a closed, folded section that combines the stiffness of a box post with the driving behavior of an open one. Guardrail post, as a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs.…

  • Standard ISO9001:2000, ISO14000, SGS, CE
  • Material Steel Grade Q235 ( S235JR/ASTM A283M), Steel Grade Q345 (S355JR/ ASTM A529M)
  • Surface Hot Dipped Galvanized or Powder Coated.
  • Thickness 3/4/4.5/5/6,according to consumers’ request
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

SpecificationDetailed introduction
ProfileC, U, Sigma, H, Flange, Square Tube, Round Post
MaterialsSteel Grade Q235 ( S235JR/ASTM A283M), Steel Grade Q345 (S355JR/ ASTM A529M)
The thickness of the steel3/4/4.5/5/6,according to consumers’ request
Normal SizeC: 1800*150*75*25, 1500*100*50*25, 1500*120*55*16, 1700*150*110*18, 1750*120*55*16, 1900*100*55*25
U: 1400/1750/1820*150*75, 1800/1830*176/178*76, 1830*140*75, 1680/2200*120*80, 2000/1820*150*100
Sigma: 1500/1900/1950/2300/2500*100*55
H: 1830*157*82, 1830*157*82, 1800*150*100
I: 100*55*4.1*5.7,120*64*4.4*6.3, 100*68*4.5*7.6
Flange Post: 3 00*300*10  Diameter:114/140
Square Tube: 130*1750/1850/2250
Round Post: Φ114*1750, Φ140*1850,Φ140*2250
Surface treatmentHot Dipped Galvanized or Powder Coated.
The thickness of galvanized550g/m2 (80µ),610g/m2 (85µ),1100 g/m2 (160µ), 1200 g/m2 (170µ), according to consumers’ request
TechniqueCold Rolled
FeaturesHigh intensity,Great corrosion resistant, Strong plasticity,Oxidation resistance,Good impact resistance, Low cost,Long lifehigher security, Environmental protection, etc.
CertificationISO9001:2000, ISO14000, SGS, CE
StandardsJT/T 281-2007,AASHTO M180,EU,USA, AS/NZS,etc.
Ordering requirementsOther special specification as per client’s requirement or drawings

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

Sigma guardrail post: where it is used

The sigma post, a folded three-wave section, is the profile most European export specifications name for W-beam runs. Its Z-shaped fold adds stiffness without adding weight, and the flat flanges make it simple to bolt the beam and the spacer on. Sigma posts are common on motorway projects, on high-speed alignment and wherever a Euro-standard barrier has to be assembled from an easily replaceable post.

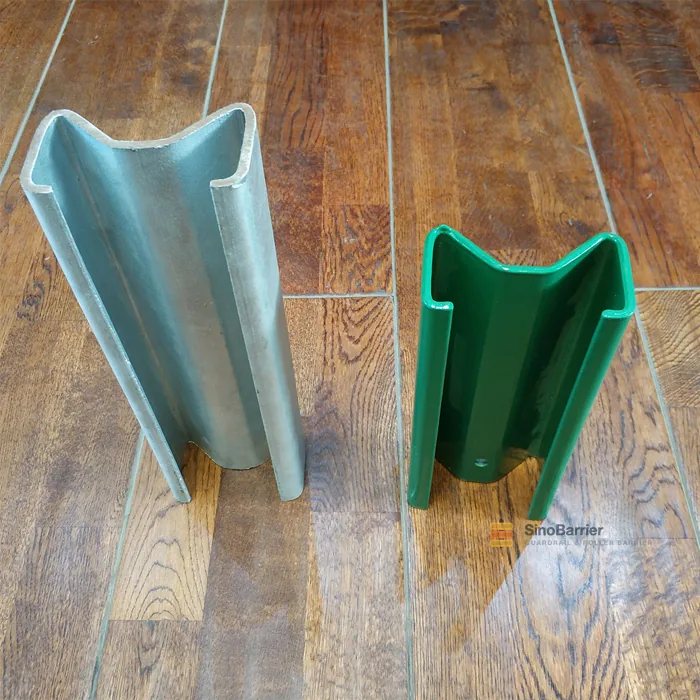

PVC-coated sigma guardrail posts

How a sigma post carries the load

The sigma guardrail post is the member that holds the beam and passes the impact load into the ground, so its section largely decides how the barrier performs in a crash. The folded web gives the post high bending resistance for its weight, and the profile is designed to work with the standard spacer and bolt set. We roll sigma posts from Q235, Q345 or Q255 and coat them in zinc or PVC for corrosion resistance.

Flanged or plain sigma posts

Plain sigma posts are driven into the soil and anchored, the usual detail on verges and embankments. Where the barrier sits on a concrete deck or a paved surface, we weld a flange plate to the base so the post can be bolted down, which is faster and more accurate on finished concrete. Both variants are cut and drilled to your schedule.

Standards, sizes and ordering

Sigma guardrail posts are rolled to AASHTO M180 for the USA, AS/NZS 3845 for Australia and New Zealand, BS EN 1317 for Europe and JT/T 281 for China, and we will roll to your own drawing as well. Tell us the length, thickness, hole pattern and coating weight and we quote from our own mill. See the wider guardrail posts range for mixed schedules.

Frequently asked questions

What is a sigma post and where is it specified?
Sigma is a folded three-wave section: the Z-shaped fold adds stiffness without adding weight, and the flat flanges make bolting the beam and the block straightforward. It is the profile most European export specifications name for W-beam runs, common on motorway work and high-speed alignment.
How does a sigma post differ from a C or U post?
The fold geometry, mainly. A C section is a single web with rolled lips and a U post is an open channel, whereas the sigma’s folded webs put more material where the bending moment is highest. The three sit on the same line and share the same fixing detail.
What sigma sizes and thicknesses do you produce?
The sigma sizes we roll most run from 1500 to 2500 mm long and 100 × 55 mm in section, in 3, 4, 4.5, 5 or 6 mm steel. Length, hole pattern and coating weight are all made to the drawing, so the post matches the tender section rather than approximating it.
Is the sigma post galvanized after forming?
Yes. It is folded, punched and cut to length first and then hot-dip galvanized, so the fold, the flange and every hole edge are coated. Powder coating is available over the same pre-treatment where the post is going to be on show.

Key features

  • C, U, Sigma, H, flange, square and round profiles in one factory
  • Steel grade Q235B / Q345B (S235JR / S355JR / ASTM A529M)
  • Hot-dip galvanized to AASHTO M180, minimum 550 g/m² coating
  • Drilled or slotted holes cut to your beam and bolt spacing
  • Cut to length, chamfered and de-burred before galvanizing

Where it is used

  • Beam-and-post barrier runs
  • Soil, asphalt and concrete embedment
  • Bridge decks and abutments
  • Rock and hard-ground sites
  • Median and shoulder installations
  • Guardrail repair and replacement

Complete the system

A barrier is supplied as a set. These are the components that go with this item on a typical installation.

Not sure which specification fits?

Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.

Ask an engineer
