AASHTO M180

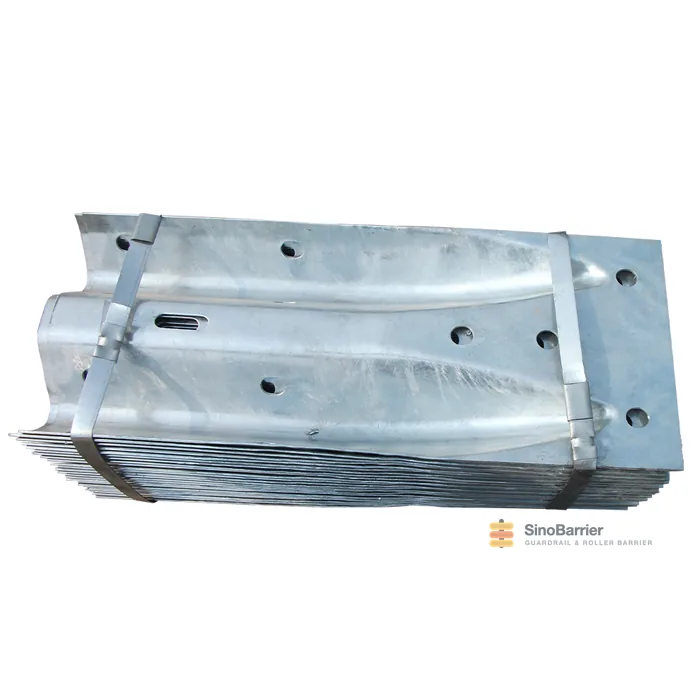

Bridge End Terminal
Part of the Guardrail End range · Highway Guardrail.
Model: Bridge end terminal
Compared to fish tail shape ends, it features holes in the end for convenient bolting the terminal firmly to some structures, such as bridges, highway roll stations, etc. Introduction of Highway Guardrail Terminal End & Features of Highway Guardrail Terminal…
- Standard AASHTO M180 / EN 1317
- Material Q235B / Q345B steel
- Surface Hot-dip galvanized, ≥ 550 g/m²
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights
Technical specification
| Profile | Bridge End Terminal |
| Material | Q235B / Q345B steel (S235JR / S355JR / ASTM A529M) |
| Surface treatment | Hot-dip galvanized; powder or PVC coated on request |
| Zinc coating | ≥ 550 g/m² (≈80 µm), AASHTO M180 |
| Standard | AASHTO M180 / EN 1317 / GB/T 31439 |
| Certificate | Mill test certificate and coating weight report with every shipment |
| Note | Custom length, hole pattern and coating weight produced to your drawing. |
Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description
Compared to fish tail shape ends, it features holes in the end for convenient bolting the terminal firmly to some structures, such as bridges, highway roll stations, etc.
Introduction of Highway Guardrail Terminal End & Features of Highway Guardrail Terminal End The guardrail terminal end fixes both sides of the guardrail in order to prevent damage to pedestrians and vehicles. There are two pieces needed every 1000 meters normally.
Poorly designed guardrail terminal ends can lead to the penetration of errant vehicles, which can be extremely dangerous. Therefore, the design is very important for the reduction of damage to the vehicle and occupants. After a series of tests, our guardrail terminal ends, well-designed road safety products by our company, are proven to effectively minimize impacts and avoid vehicles from being speared by the terminal ends.
Features of Guardrail Terminal End
Surface: galvanized, aluminum coated, PVC coated
Color: any color is available (customized paintings are available)
Sizes: designed to match different sized rails that they will be connected to
Suitable for various types of posts

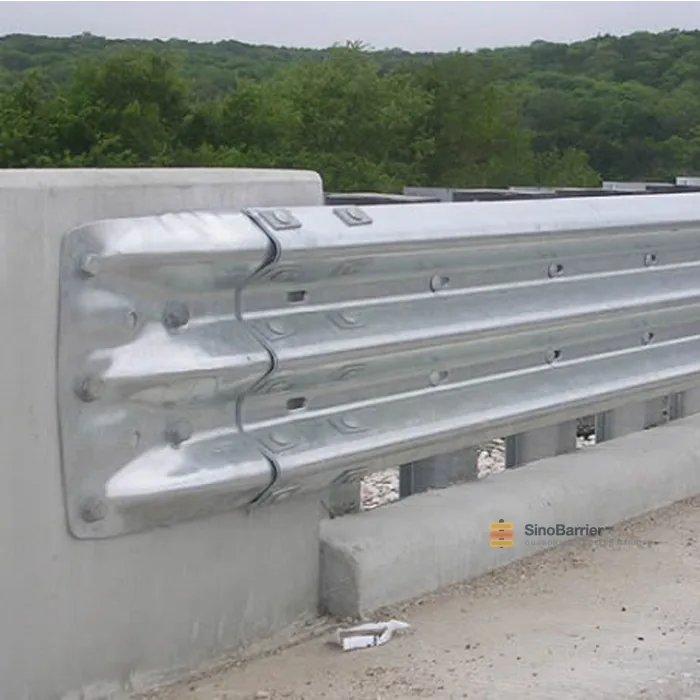

Bright colors are often painted on this guardrail component to warn drivers of the presence of the rail. It is also designed prevent the errant vehicles from being penetrated. So it is commonly installed alongside or amid the roadway as shown in the picture on the right.

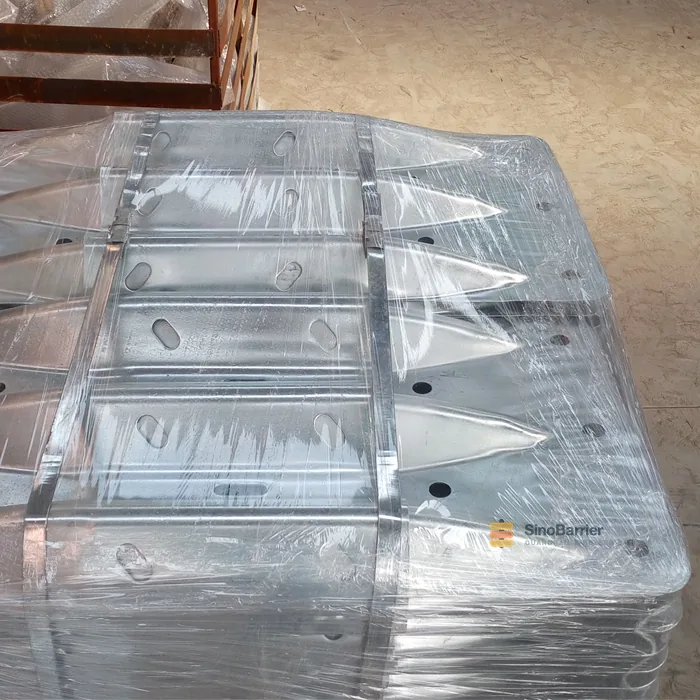

For thrie beam guardrails
Bridge guardrail and the bridge end terminal
A bridge guardrail has a job that a roadside barrier does not: it has to protect the vehicle, the deck edge and the drop beyond it, all in a space where there is no room to redirect a car sideways. On a bridge, the barrier is bolted to a parapet or to a concrete curb rather than driven into soil, so the connection — and the transition where the bridge rail meets the standard roadside rail — matters as much as the beam itself.
The bridge end terminal is the point where that run ends. It caps the last post so an errant vehicle is redirected instead of spearing onto the exposed beam end, and it ties the bridge rail back to the approach guardrail so there is no abrupt stiffness change at the joint. Because a bridge guardrail cannot deflect, the terminal and the transition absorb the energy that the open-road section normally would.
Frequently asked questions
- What does a bridge end terminal do?
- It fixes both sides of the guardrail at a bridge, a culvert or a roll station, so the end of the run is anchored to the structure rather than left as a cut face. The terminal carries holes in the end so it can be bolted firmly to the structure.
- How does a bridge end differ from a fishtail end?
- A fishtail end flattens and turns the beam down into the ground, while the bridge end is bolted to a structure and closes the run off on both sides. Which one is right depends on whether there is something to bolt to at the end of the run.
- What standards and coating are used?
- The terminal is rolled and fabricated in Q235B or Q345B steel and hot-dip galvanized to a minimum 550 g/m² to AASHTO M180, with powder or PVC coating on request. The standard is AASHTO M180 / EN 1317 / GB/T 31439, so the section can be matched to whichever your tender names.
- What is supplied with the terminal?
- The terminal is shop-welded and jig-checked so it bolts straight to the last post, and it ships with the bolt set and an installation sketch. The mill test certificate and the coating weight report go with the shipment.
Key features
- Bridge, buffer, fishtail, flared and bullnose end treatments
- Turns the end of a barrier run into a crashworthy termination
- Hot-dip galvanized to AASHTO M180 with the rest of the system
- Shop-welded and jig-checked so it bolts straight to the last post
- Delivered with the bolt set and an installation sketch
Where it is used
- Barrier run terminations
- Bridge and culvert ends
- Median openings
- Road junctions and lay-bys
- Highway maintenance ends
- Depressed medians
Complete the system
A barrier is supplied as a set. These are the components that go with this item on a typical installation.
Not sure which specification fits?
Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
