Guardrail End

Fishtail End Terminal

Part of the Guardrail End range · Highway Guardrail.

Model: Fishtail end terminal

The fishtail end terminal is a flared, energy-absorbing end treatment that turns the start of a W-beam run into something a vehicle can strike safely. Guardrail Terminal End —— The Best Protection Against Impact The roadway guardrail terminal end are installed at the end of each part of crash barrier system with the aim to prevent damage and harm to pedestrians and vehicles when vehicles become errant and…

  • Standard AASHTO M180 / EN 1317
  • Material Q235B / Q345B steel
  • Surface Hot-dip galvanized, ≥ 550 g/m²
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

ProfileFishtail End Terminal
MaterialQ235B / Q345B steel (S235JR / S355JR / ASTM A529M)
Surface treatmentHot-dip galvanized; powder or PVC coated on request
Zinc coating≥ 550 g/m² (≈80 µm), AASHTO M180
StandardAASHTO M180 / EN 1317 / GB/T 31439
CertificateMill test certificate and coating weight report with every shipment
NoteCustom length, hole pattern and coating weight produced to your drawing.

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

Fishtail end terminal: where it is used

The fishtail end is the terminal shaped to the end of the rail so the beam flattens and turns down into the ground, rather than ending in a cut face. The flared tail lets the beam bend away under impact instead of spearing the vehicle, and it is used at the approach end of W-beam and thrie-beam runs on highways, embankments and bridge approaches.

What a fishtail terminal does

A fishtail end terminal is the treatment fitted to the end of a barrier run, where the rail is folded down and anchored so it cannot spear a vehicle that leaves the road. The shape is the reason for the name: the beam widens and turns outward like a tail, so a head-on impact is deflected down and along the rail rather than resisted head-on. It is made for both W-beam and thrie-beam sections.

Fixing and installation

The terminal bolts to the end of the beam and is anchored to the ground at the tail, and the transition into the main run is made with the standard posts and blocks. The tail has to be set to the right slope and depth for the terminal to work, so the installation detail follows the beam profile and the site. We supply the terminal, the anchor and the transition pieces together.

Standards, sizes and ordering

Fishtail end terminals are manufactured to AASHTO M180 and hot-dip galvanized, with painting or PVC coating available. Standard lengths run from 700 to 730 mm, with wave width and height matched to the beam; all sizes can be made to your drawing. Send the beam profile and the quantity and we quote from our own mill.

Fishtail end terminal in blue PVC coating

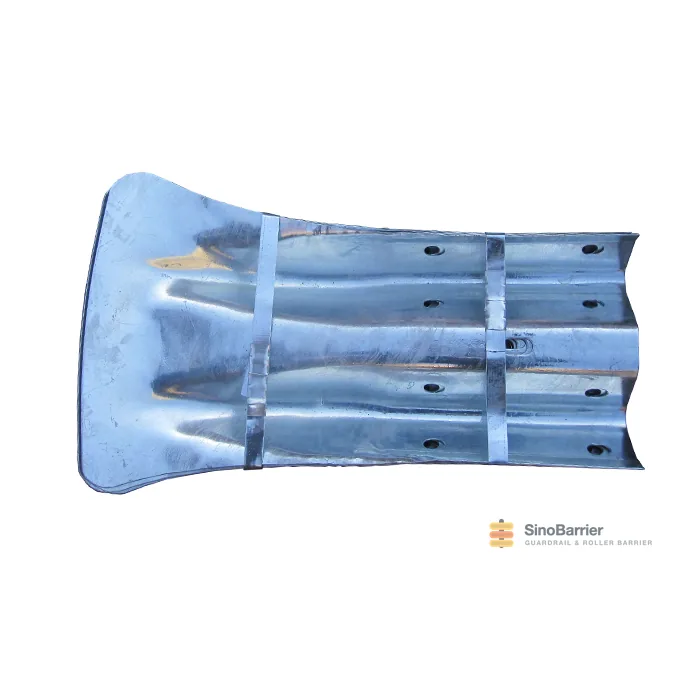

W Beam Fishtail End

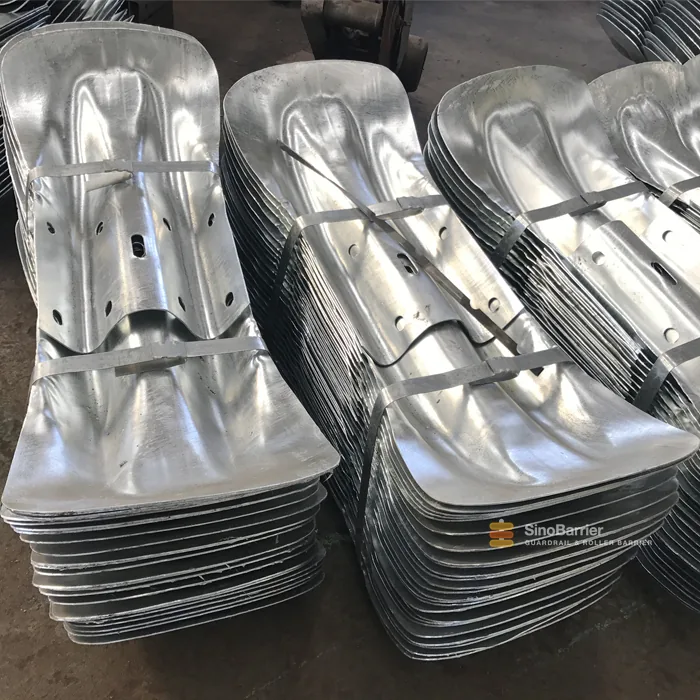

Galvanized fishtail end terminal

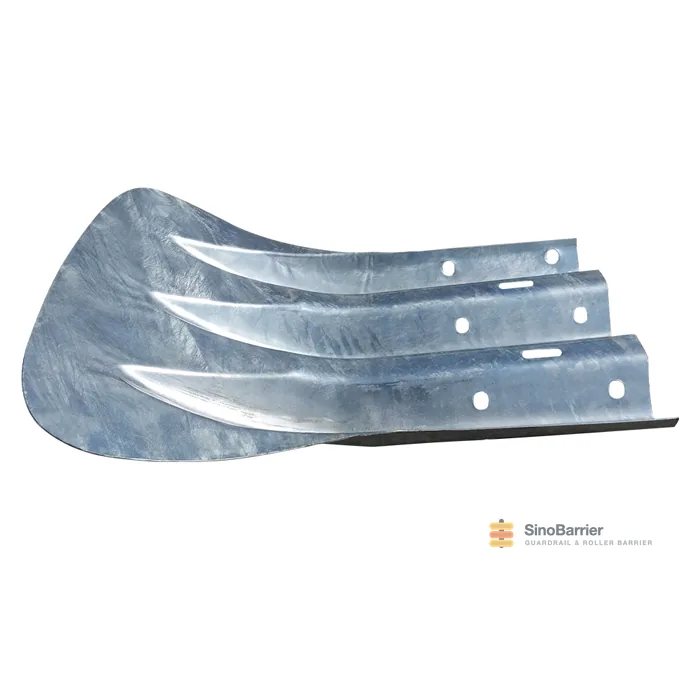

Thrie Beam Fishtail End

Advantages of a fishtail end

  • Flattens and turns the beam down into the ground, so the run ends without a cut face pointing at traffic.
  • Absorbs collision energy by letting the beam bend away instead of resisting the impact.
  • Made in the same steel and coating as the beam it closes, so the joint needs no separate fixing.
  • Available in the wave profile of the run, which keeps the sight line continuous.

Sizes and finish

Materials Steel Q235B (ASTM A283M) or Q345 (ASTM A529M)
Length 700 / 710 / 730 mm, or to drawing
Wave width 310 / 460 / 506 mm, or to drawing
Wave depth 83 / 85 mm, or to drawing
Thickness 2.75 / 2.85 / 3.0 / 3.75 / 3.85 / 4.0 mm
Zinc coating ≥ 75 µm, equivalent to ≥ 550 g/m²

Frequently asked questions

What is a fishtail end terminal?
It is the terminal shaped to the end of the rail so the beam flattens and turns down into the ground rather than ending in a cut face. The flared tail lets the beam bend away under impact instead of spearing the vehicle.
Where is a fishtail end used?
At the approach end of W-beam and thrie-beam runs on highways, embankments and bridge approaches, wherever the rail ends in open ground with nothing to bolt a terminal to.
How is the fishtail installed?
The terminal bolts to the last length of rail and the tail is set down into the ground at the angle shown on the setting-out drawing. The finished end then presents a flared, sloping face to an approaching vehicle instead of a cut section.
What coating is used on the fishtail terminal?
Hot-dip galvanized to a minimum 550 g/m² to AASHTO M180, or powder or PVC coated on request, so the coating of the terminal matches the beam and the posts of the run it closes.

Key features

  • Bridge, buffer, fishtail, flared and bullnose end treatments
  • Turns the end of a barrier run into a crashworthy termination
  • Hot-dip galvanized to AASHTO M180 with the rest of the system
  • Shop-welded and jig-checked so it bolts straight to the last post
  • Delivered with the bolt set and an installation sketch

Where it is used

  • Barrier run terminations
  • Bridge and culvert ends
  • Median openings
  • Road junctions and lay-bys
  • Highway maintenance ends
  • Depressed medians

Complete the system

A barrier is supplied as a set. These are the components that go with this item on a typical installation.

Not sure which specification fits?

Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
