Guardrail End

Fishtail End Section

Part of the Guardrail End range · Highway Guardrail.

Model: Fishtail end section

This fishtail end section is the shaped W-beam piece that terminates a barrier run — the part that takes the impact energy and folds away from the traffic face instead of spearing the vehicle. Products Description The end of a guardrail—Fishtail End The end of the highway guardrail is the end of the road guardrail or joint part, which is composed of an end, because the road conditions are different, so the road guardrail end is divided into a…

  • Standard AASHTO M180 / EN 1317
  • Material Q235B / Q345B steel
  • Surface Hot-dip galvanized, ≥ 550 g/m²
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

ProfileCrash Barrier Fishtail End terminal section for highway guardrail
MaterialQ235B / Q345B steel (S235JR / S355JR / ASTM A529M)
Surface treatmentHot-dip galvanized; powder or PVC coated on request
Zinc coating≥ 550 g/m² (≈80 µm), AASHTO M180
StandardAASHTO M180 / EN 1317 / GB/T 31439
CertificateMill test certificate and coating weight report with every shipment
NoteCustom length, hole pattern and coating weight produced to your drawing.

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

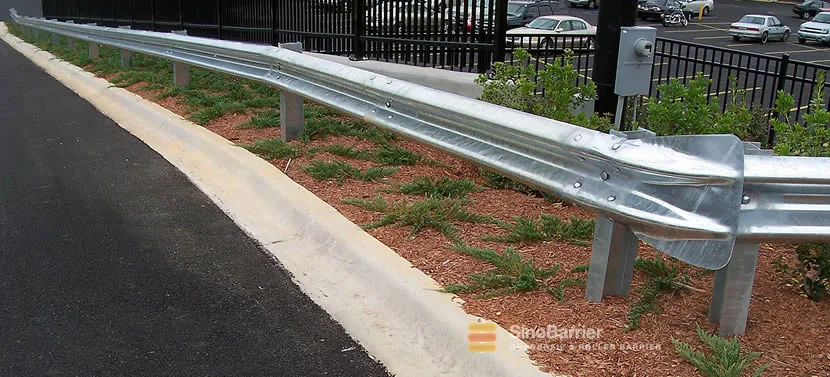

W-beam guardrail with fishtail end terminal at the roadside

The end of a guardrail—Fishtail End

The end of the highway guardrail is the end of the road guardrail or joint part, which is composed of an end, because the road conditions are different, so the road guardrail end is divided into a variety of styles, according to the guardrail design situation, the guardrail end is generally divided into the following types: Fishtail End, Buffer End, Round End(bullnose end), Ground anchor end, Bridge End, Extruded guardrail end, etc.

The fishtail end, the end is mainly refer to the European and American countries design concept, shape, like the fishtail, so called the fishtail end, also called endwing, it consists of the strip after punching and forming a molding, again through the surface hot galvanizing processing, has a simple, easy to assembly, anti-corrosion ability strong, can play the part of guide to the cars on the road and the collision effect, effectively prevent the accident vehicle out outside.

The fishtail end is divided into two types of specifications and models with W beam and Thrie beam. W beam are used with W beam guardrail plate, and Thrie beam are used with Thrie beam guardrail plate.

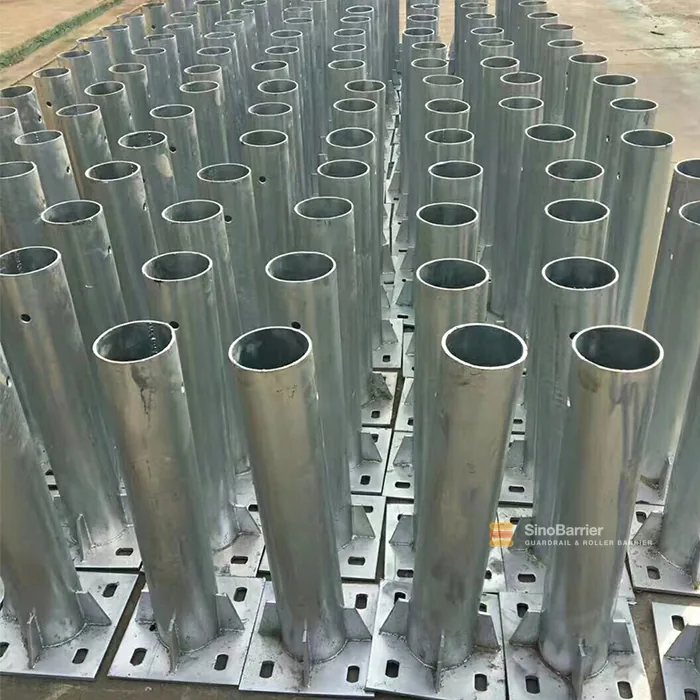

Galvanized guardrail posts stacked for a terminal order

The fishtail end for thrie beam guardrail

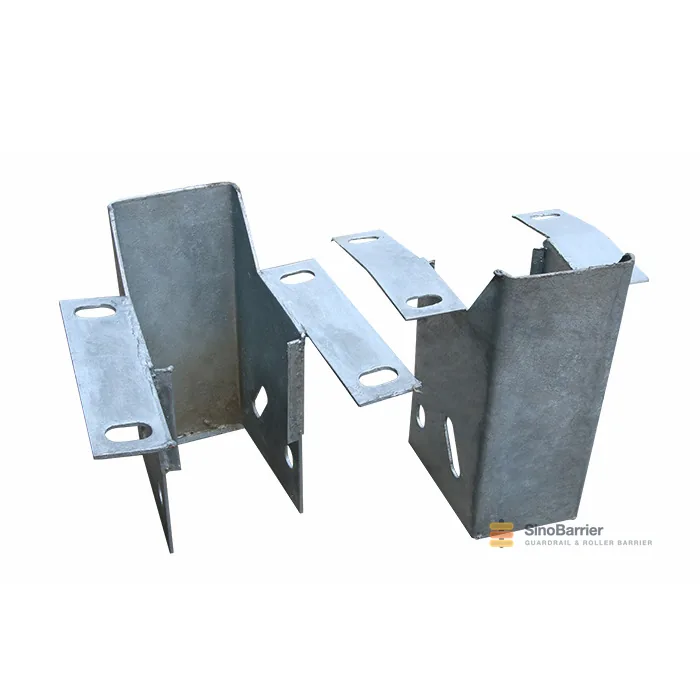

Galvanized fishtail end terminal components

The fishtail end for w beam guardrail

Product parameters

Fishtail end terminal assembly drawing

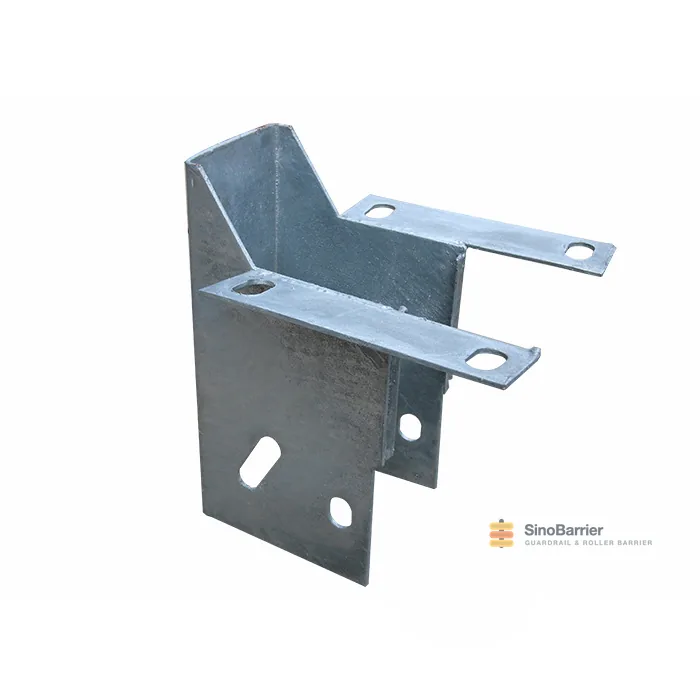

Galvanized fishtail terminal bracket

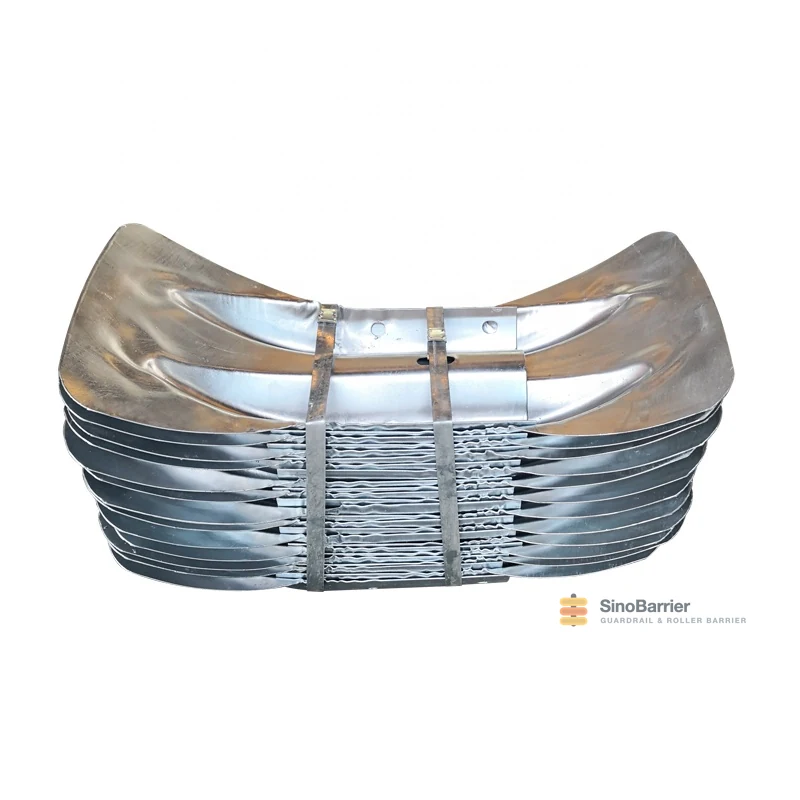

Fishtail End Terminal

Specifications:

Materials: Steel(Q235 or Q345 Grade)
Length: 700,710,730 mm or customized
Wave Width: 310, 506,460mm or customized
Wave Height: 83,85,310mm or customized
Thickness: 2.75mm,3mm,4mm or customized
Zinc Coating: 350- 550g/m2
Surface treatment: Hot dipped Galvanized or powder coating
Features: Great corrosion resistant, high intensity, long and durable

Frequently asked questions

What is a fishtail end section?
It is the end section of a crash barrier, the piece that closes a road guardrail run where the road conditions change and the rail has to end. The fishtail is one of several end styles, alongside flared, bullnose, buffer and bridge ends.
How do we choose the right end style?
By what is at the end of the run and which way traffic approaches it. A fishtail turns the beam down into open ground, a flared end angles it away from traffic and a bullnose wraps it round for an approach from either side. Send the layout and we will match the style.
What is the end section made of?
Q235B or Q345B steel, hot-dip galvanized to a minimum 550 g/m² to AASHTO M180, in AASHTO M180 / EN 1317 / GB/T 31439. Powder or PVC coating is available on request.
Can the end section be made to our drawing?
Yes. Length, hole pattern and coating weight are all produced to drawing, and the piece is shop-welded and jig-checked so it bolts straight to the last post and arrives with the bolt set and an installation sketch.

Key features

  • Bridge, buffer, fishtail, flared and bullnose end treatments
  • Turns the end of a barrier run into a crashworthy termination
  • Hot-dip galvanized to AASHTO M180 with the rest of the system
  • Shop-welded and jig-checked so it bolts straight to the last post
  • Delivered with the bolt set and an installation sketch

Where it is used

  • Barrier run terminations
  • Bridge and culvert ends
  • Median openings
  • Road junctions and lay-bys
  • Highway maintenance ends
  • Depressed medians

Complete the system

A barrier is supplied as a set. These are the components that go with this item on a typical installation.

Not sure which specification fits?

Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.

Ask an engineer
