H Shape Guardrail Post

Part of the Guardrail Post range · Highway Guardrail.

Model: H post

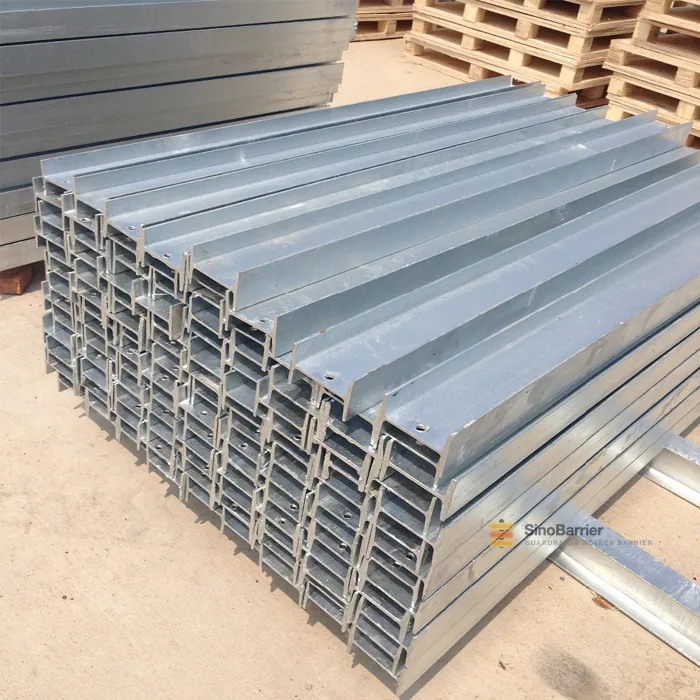

The H shape guardrail post is a wide-flange H-section for soft ground and heavy loading, supplied galvanized with the beam bolt holes already punched. Guardrail post, as a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs.…

  • Standard ISO9001:2000, ISO14000, SGS, CE
  • Material Steel Grade Q235 ( S235JR/ASTM A283M), Steel Grade Q345 (S355JR/ ASTM A529M)
  • Surface Hot Dipped Galvanized or Powder Coated.
  • Thickness 3/4/4.5/5/6,according to consumers’ request
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

SpecificationDetailed introduction
ProfileC, U, Sigma, H, Flange, Square Tube, Round Post
MaterialsSteel Grade Q235 ( S235JR/ASTM A283M), Steel Grade Q345 (S355JR/ ASTM A529M)
The thickness of the steel3/4/4.5/5/6,according to consumers’ request
Normal SizeC: 1800*150*75*25, 1500*100*50*25, 1500*120*55*16, 1700*150*110*18, 1750*120*55*16, 1900*100*55*25
U: 1400/1750/1820*150*75, 1800/1830*176/178*76, 1830*140*75, 1680/2200*120*80, 2000/1820*150*100
Sigma: 1500/1900/1950/2300/2500*100*55
H: 1830*157*82, 1830*157*82, 1800*150*100
I: 100*55*4.1*5.7,120*64*4.4*6.3, 100*68*4.5*7.6
Flange Post: 3 00*300*10  Diameter:114/140
Square Tube: 130*1750/1850/2250
Round Post: Φ114*1750, Φ140*1850,Φ140*2250
Surface treatmentHot Dipped Galvanized or Powder Coated.
The thickness of galvanized550g/m2 (80µ),610g/m2 (85µ),1100 g/m2 (160µ), 1200 g/m2 (170µ), according to consumers’ request
TechniqueCold Rolled
FeaturesHigh intensity,Great corrosion resistant, Strong plasticity,Oxidation resistance,Good impact resistance, Low cost,Long lifehigher security, Environmental protection, etc.
CertificationISO9001:2000, ISO14000, SGS, CE
StandardsJT/T 281-2007,AASHTO M180,EU,USA, AS/NZS,etc.
Ordering requirementsOther special specification as per client’s requirement or drawings

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

H-section guardrail post: where it is used

The H-section post, a double-web profile that looks like the letter H, is chosen where a single-web post would not be stiff enough. The second web roughly doubles the bending resistance without widening the footprint, so an H post is used on higher-speed roads, bridge approaches and anywhere the barrier has to hold a thrie-beam rather than a lighter W-beam. It is also the profile of choice where posts are driven deep into soft or variable ground.

How an H-section post carries the load

In a guardrail system the post is the member that holds the beam and transfers the impact load down into the soil. An H-section post does this with two webs instead of one, which raises the bending capacity of the section at little extra weight. We form H posts from Q235, Q345 or Q255 steel and finish them with hot-dip zinc or PVC coating so that corrosion resistance matches the design life of the run.

Flanged or plain H-section posts

Plain H posts are driven into the ground and anchored through the soil, which is the normal detail on embankments, verges and rural roads. Where the run sits on a bridge deck, a retaining wall or a concrete slab, we weld a flange plate to the foot so the post can be bolted down instead. Tell us the fixing condition and we supply the matching version, drilled to suit the beam and spacer.

Standards, sizes and ordering

Our H-section guardrail posts are manufactured to AASHTO M180 in the USA, AS/NZS 3845 in Australia and New Zealand, BS EN 1317 in Europe and JT/T 281 in China, or to your own specification. Give us the post length, web thickness, hole pattern and coating weight and we return a quotation from the mill. For mixed post schedules, see our full guardrail posts range.

Frequently asked questions

When is an H-section post the right choice?
Where a single-web post would not be stiff enough. The second web roughly doubles the bending resistance without widening the footprint, so an H post is used on higher-speed roads, bridge approaches and wherever the barrier has to hold a thrie-beam rather than a W-beam.
What H sizes do you produce?
The H sections we roll most are 1830 × 157 × 82 mm and 1800 × 150 × 100 mm, in 3, 4, 4.5, 5 or 6 mm steel. As with the rest of the range, the length, the hole pattern and the coating weight are made to the drawing.
Does an H post need a different block?
Yes. The block is profiled to the post face, so an H post takes an H-shape block-out. The block holds the rail at the offset the system was designed for, which is what lets the beam deflect instead of being crushed against the post.
How is the H post coated?
Hot-dip galvanized to AASHTO M180 with a minimum 550 g/m² coating, or powder coated on request over the same pre-treatment. The post is cut, punched and de-burred before it goes into the bath, so the coating reaches the web roots and every hole edge.

Key features

  • C, U, Sigma, H, flange, square and round profiles in one factory
  • Steel grade Q235B / Q345B (S235JR / S355JR / ASTM A529M)
  • Hot-dip galvanized to AASHTO M180, minimum 550 g/m² coating
  • Drilled or slotted holes cut to your beam and bolt spacing
  • Cut to length, chamfered and de-burred before galvanizing

Where it is used

  • Beam-and-post barrier runs
  • Soil, asphalt and concrete embedment
  • Bridge decks and abutments
  • Rock and hard-ground sites
  • Median and shoulder installations
  • Guardrail repair and replacement

Complete the system

A barrier is supplied as a set. These are the components that go with this item on a typical installation.

Not sure which specification fits?

Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.

Ask an engineer
