H Shape Guardrail Spacer

Part of the Guardrail Spacer range · Highway Guardrail.

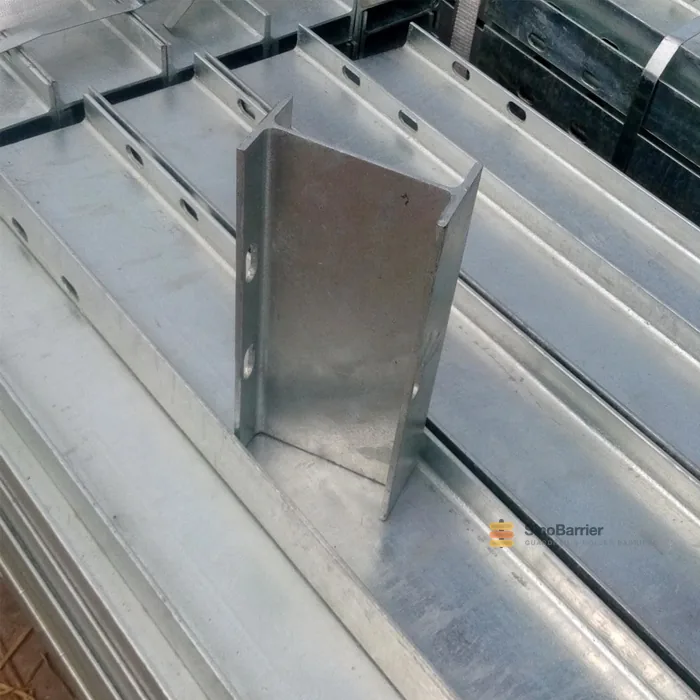

Model: H-shape spacer

The H shape guardrail spacer fits between an H-section post and the beam, keeping the rail at the offset the barrier needs for its design deflection. Guardrail Block refers to Prevention block,blocker,block-out.in some places,it was named “SPACER” or “Separator”. It refers to the part between guardrail and post,and with many different shapes or designs. Block itself is an energy absorbing part, so it could…

  • Standard ASTM,AISI,DIN,GB
  • Material Q235, Q345,other standard steel, etc
  • Surface Hot dip galvanized, powder coated
  • Thickness 2.5mm – 5mm or as request
  • MOQ 1 × 20GP container
  • Lead time 15–25 days
  • Mill test certificate with every shipment
  • Shop drawings and setting-out plan included
  • Custom lengths, hole patterns and coating weights

Technical specification

Product NameGalvanized Guard rail Used Spacer
MaterialQ235, Q345,other standard steel, etc
Technologycold rolled
Surface TreatmentHot dip galvanized, powder coated
SpecificationU, C, H, F,Sigma,Box,Trapezoidal Spacer,Offset Block
Thickness2.5mm – 5mm or as request
Zinc Coating350g-600g/m2
Country of OriginShandong, China
StandardASTM,AISI,DIN,GB
CertificateISO9001:2008 ,GB/T19001-2008,CE,SGS
Other special specification as per client’s requirement or drawings

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.

Description

H-shape guardrail spacer: where it is used

The H-shape spacer is the block-out used where a W-beam is bolted to an H-section post. Its two webs sit between the rail and the post, holding the beam away from the post face so the rail can deflect and absorb energy instead of being crushed against the post. It is the normal detail on higher-speed roads and on thrie-beam runs carried on a heavier post.

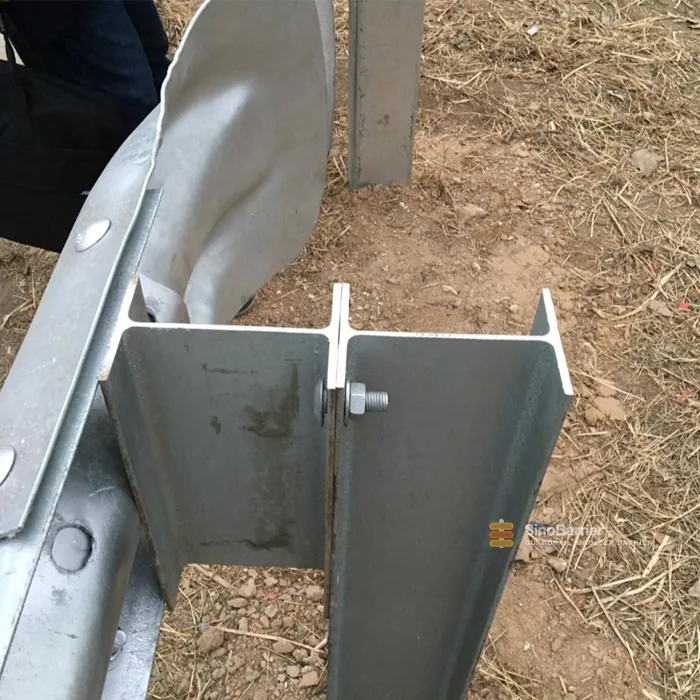

H-shape guardrail spacer fitted between beam and post

How an H-shape block absorbs energy

An H-shape guardrail spacer, also called a block-out, is the block that keeps the beam clear of the post and lets the rail bend progressively in a crash. It works with the post and the beam: the block sets the offset, the beam deflects, and the assembly spreads the impact along a longer length of barrier. Our blocks are formed from Q235 or Q345 steel and hot-dip galvanized, so corrosion does not stop them doing that job.

Where the H block sits in the system

The block is bolted between the guardrail beam and the post, with the bolt set running through the rail, the block and the post web. Because it sets the stand-off distance, the wrong thickness changes how the barrier behaves, so each block is matched to the post section and the beam. We drill H-post blocks to your bolt pattern and can deliver them with the posts and bolts as one fixing package.

Standards, sizes and ordering

H-shape blocks are produced to AASHTO M180, AS/NZS 3845, BS EN 1317 and JT/T 281, and we also make to your drawing. Send the post section, the block thickness and the bolt spacing and we quote from our own mill. Tell us if you would like a sample block to check the section.

Frequently asked questions

Where does an H-shape spacer sit in the system?
Between a W-beam and an H-section post. Its two webs stand the rail off the post face so the beam can deflect and absorb energy instead of being crushed against the post, which makes it the normal detail on higher-speed roads and on thrie-beam runs carried on H posts.
How does an H-shape block absorb energy?
By holding the offset. The block itself is stiff, and its job is to keep the rail at the design distance from the post so the beam can bend through its own section. Take the block out and the rail sits on the post face, the deflection is lost and the barrier stops working as designed.
What thickness and coating do you supply?
2.5 to 5 mm strip, cold rolled, hot-dip galvanized or powder coated, with a 350 to 600 g/m² zinc coating. The thickness follows the block’s design, so send the section detail if your tender names a specific gauge.
Is the spacer supplied with the bolts?
It can be. Blocks are supplied loose, or pre-assembled with the bolts and washers so a fixing kit arrives as one item. The bolts and washers are hot-dip galvanized to match the block and the beam.

Key features

  • Box, H, U, C, F and trapezoidal sections plus offset blocks
  • Holds the beam at the offset it was crash-tested at
  • Hot-dip galvanized to AASHTO M180 with the matching beam
  • Punched to the same bolt pattern as the beam it pairs with
  • Supplied loose or pre-assembled with bolts and washers

Where it is used

  • Beam-and-post barrier runs
  • Bridge decks and narrow offsets
  • Median and shoulder installations
  • Alignment offsets at transitions
  • Guardrail repair and replacement
  • Curved and sloped sections

Complete the system

A barrier is supplied as a set. These are the components that go with this item on a typical installation.

Not sure which specification fits?

Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.

Ask an engineer
