U Shape Guardrail Spacer
Part of the Guardrail Spacer range · Highway Guardrail.
Model: U-shape spacer

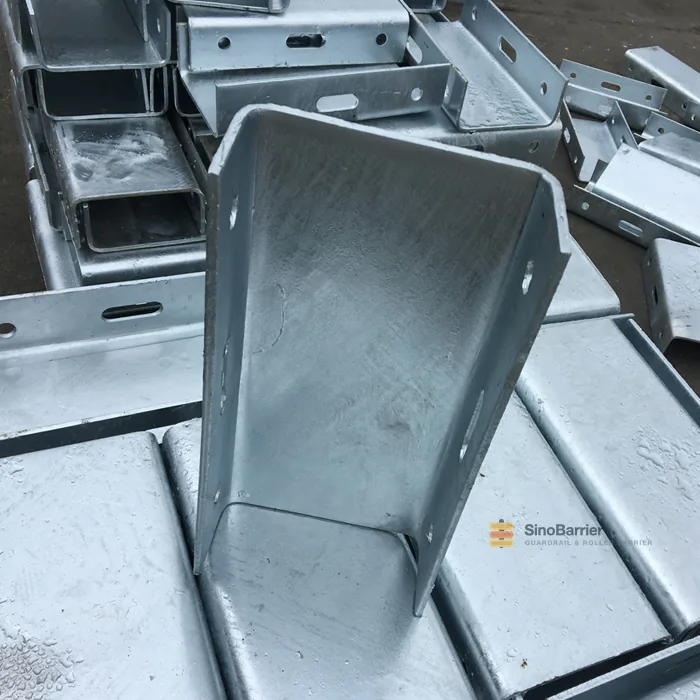

A U shape guardrail spacer is pressed from strip into the U profile that matches a lipped-channel post and standard W-beam bolt centers. Guardrail Block refers to Prevention block,blocker,block-out. in some places,it was named “SPACER” or “Separator”. It refers to the part between guardrail and post,and with many different shapes or designs. Guardrail Spacer are considered as passive…
- Standard ASTM,AISI,DIN,GB
- Material Q235, Q345,other standard steel, etc
- Surface Hot dip galvanized, powder coated
- Thickness 2.5mm – 5mm or as request
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights
Technical specification
| Product Name | Galvanized Guard rail Used Spacer |
| Material | Q235, Q345,other standard steel, etc |
| Technology | cold rolled |
| Surface Treatment | Hot dip galvanized, powder coated |
| Specification | U, C, H, F,Sigma,Box,Trapezoidal Spacer,Offset Block |
| Thickness | 2.5mm – 5mm or as request |
| Zinc Coating | 350g-600g/m2 |
| Country of Origin | Shandong, China |
| Standard | ASTM,AISI,DIN,GB |
| Certificate | ISO9001:2008 ,GB/T19001-2008,CE,SGS |
| Other special specification as per client’s requirement or drawings | |
Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description
U-shape guardrail spacer: where it is used
The U-shape spacer is the open block-out used with U-section and channel posts, and on retrofit work where a rail is added to an existing structure. Its open back lets it be bolted through the post web, so it fits where a closed block would not have room to sit. It is common on light-duty runs, fence lines and bracket-mounted barrier.

How a U-shape block absorbs energy
A U-shape spacer holds the beam clear of the post so the rail can deflect and take the energy out of an impact. The open channel is light and easy to bolt through, which matters on retrofit work where access is tight. We form the block from Q235 or Q345 steel and hot-dip galvanize it, so the coating keeps rust and corrosion out for the life of the run.
Fixing the U block

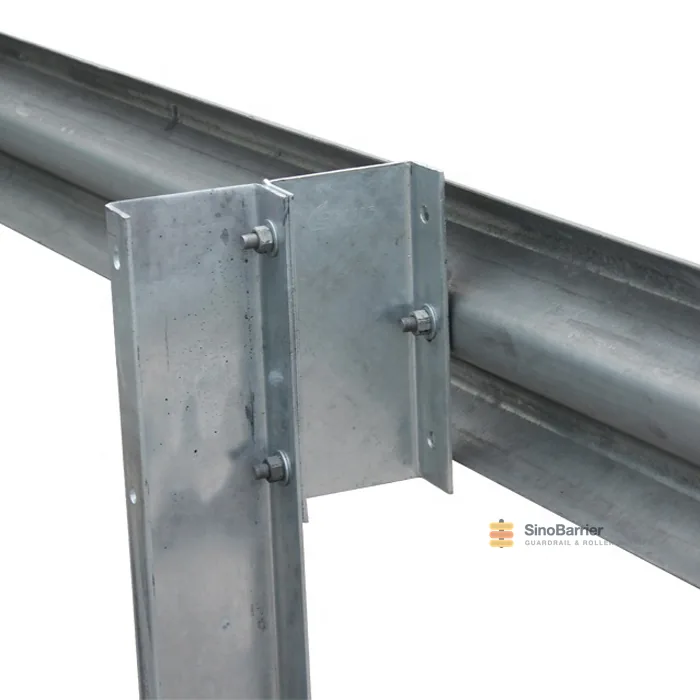

The block is bolted between the rail and the post web, and the same bolt set joins the three parts. On retrofit runs the block is often the piece that lets a new rail match an existing post spacing, so we will make it to the offset you measure on site. Blocks can be supplied with the matching posts and bolts as one package.
Standards, sizes and ordering
U-shape blocks are made to AASHTO M180, AS/NZS 3845, BS EN 1317 and JT/T 281, and we also press to your own drawing. Give us the offset, the bolt pattern and the post section and we quote from our mill. Ask for a sample if you would like to check the section before ordering.
Frequently asked questions
- Where is a U-shape spacer used?
- With U-section and channel posts, and on retrofit work where a rail is added to an existing structure. Its open back lets it be bolted through the post web, so it fits where a closed block would not have room to sit, such as light-duty runs, fence lines and bracket-mounted barriers.
- How does the open back change the fixing?
- The bolt passes through the block and the post web on the same axis, so the block can be tightened against a flat web without a separate backing plate. That is what makes it practical on retrofit work where the post is already in place and cannot be moved.
- What sizes and coating are available?
- Section, thickness and hole centres are made to your drawing, in 2.5 to 5 mm steel with a 350 to 600 g/m² zinc coating. Tell us the post profile and the rail section and we will size the block to hold the correct offset.
- Can a U block be supplied cut to a non-standard length?
- Yes. The block is rolled and punched to order, so non-standard lengths and hole patterns are normal rather than an exception. Send the drawing and we return a confirmation drawing before the run starts.
Key features
- Box, H, U, C, F and trapezoidal sections plus offset blocks
- Holds the beam at the offset it was crash-tested at
- Hot-dip galvanized to AASHTO M180 with the matching beam
- Punched to the same bolt pattern as the beam it pairs with
- Supplied loose or pre-assembled with bolts and washers
Where it is used
- Beam-and-post barrier runs
- Bridge decks and narrow offsets
- Median and shoulder installations
- Alignment offsets at transitions
- Guardrail repair and replacement
- Curved and sloped sections
Complete the system
A barrier is supplied as a set. These are the components that go with this item on a typical installation.
Not sure which specification fits?
Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
Ask an engineerOther items in this range
