Box Block for Hot Galvanized Steel Guardrail
Part of the Guardrail Spacer range · Highway Guardrail.
Model: Box spacer
A guardrail box block holds the beam away from the post so the barrier can deflect on impact; every block is galvanized to the same AASHTO M180 coating as the beam it carries. Products Description Guardrail Spacer —— Galvanized Steel Spacer For Highway Guardrail Barrier Guardrail Block refers to Prevention block,blocker,block-out.in some places,it was named “SPACER” or “Separator”. It refers to the part between guardrail and…
- Standard ASTM,AISI,DIN,GB
- Material Q235B Q345B
- Surface Hot dip galvanized powder coated
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights
Technical specification
| Name | Box spacer |
| Material | Q235B Q345B |
| Technology | cold rolled |
| Surface Treatment | Hot dip galvanized powder coated |
| Zinc Coating | 350g-600g/m2 |
| Standard | ASTM,AISI,DIN,GB |
| Certificate | ISO9001:2008 ,GB/T19001-2008,CE,SGS |
| COO | Shandong, China |

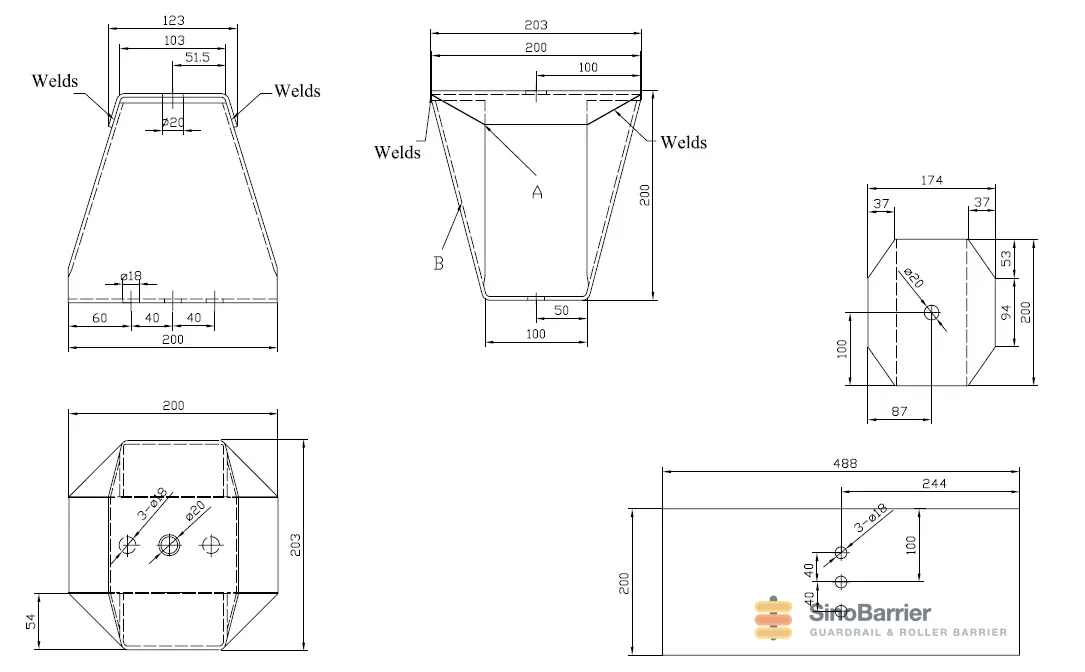

Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description

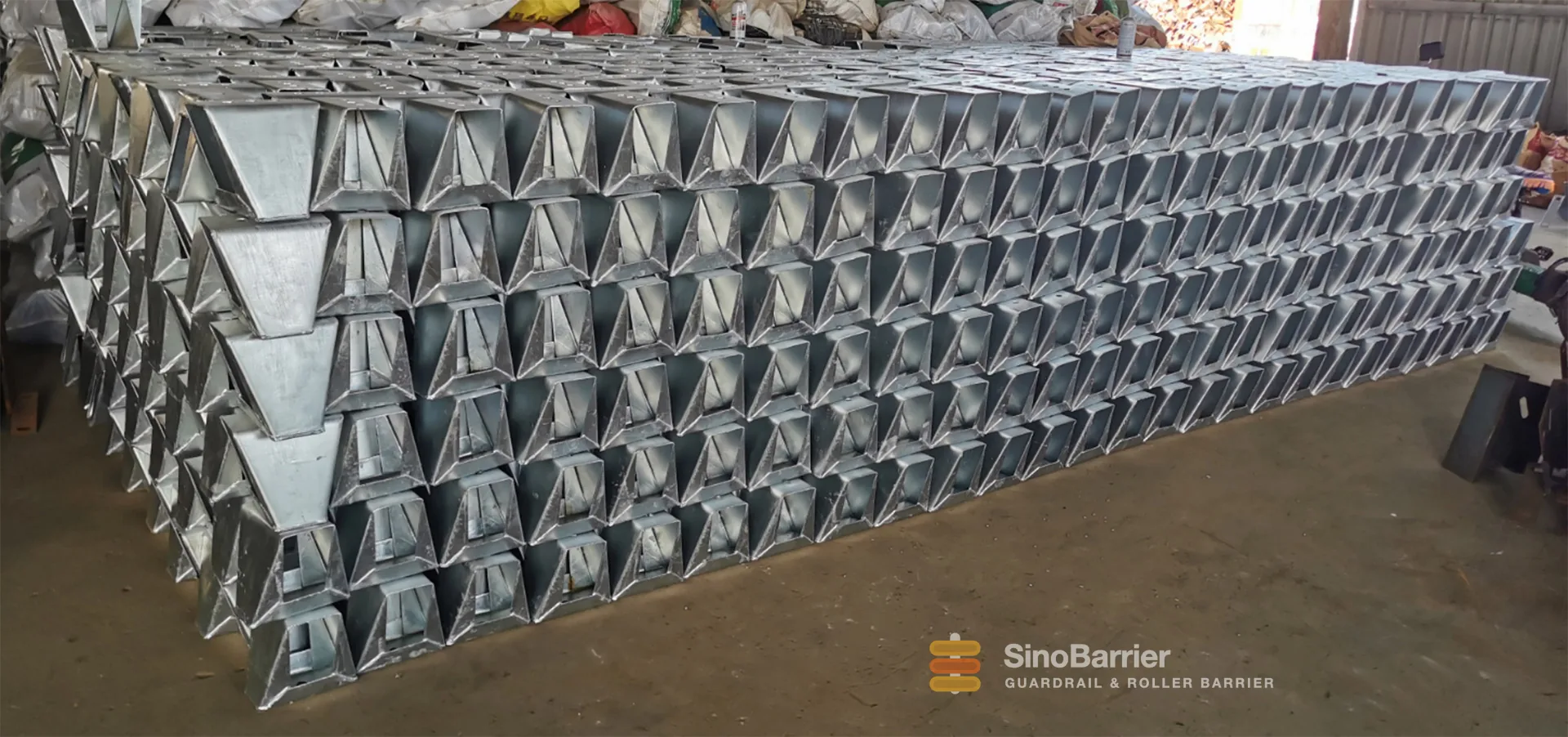

Box block for hot-dip galvanized guardrail: where it is used
The box block is the closed, welded block-out used where a W-beam is fixed to a C-section post on a hot-dip galvanized run. It is punched and formed from steel strip, welded into a box, then galvanized with the rest of the system so the coating is continuous across the block and the rail. It is a common detail on municipal and secondary-road barrier.

How the box block absorbs energy
The box block sits between the beam and the post and keeps the rail at a fixed offset, so the beam can deflect and absorb energy during a collision rather than being pinned against the post. Because the section is closed it is stiff in every direction and spreads the bolt load across the whole face of the block. We weld the box from Q235 or Q345 strip and galvanize the finished part.

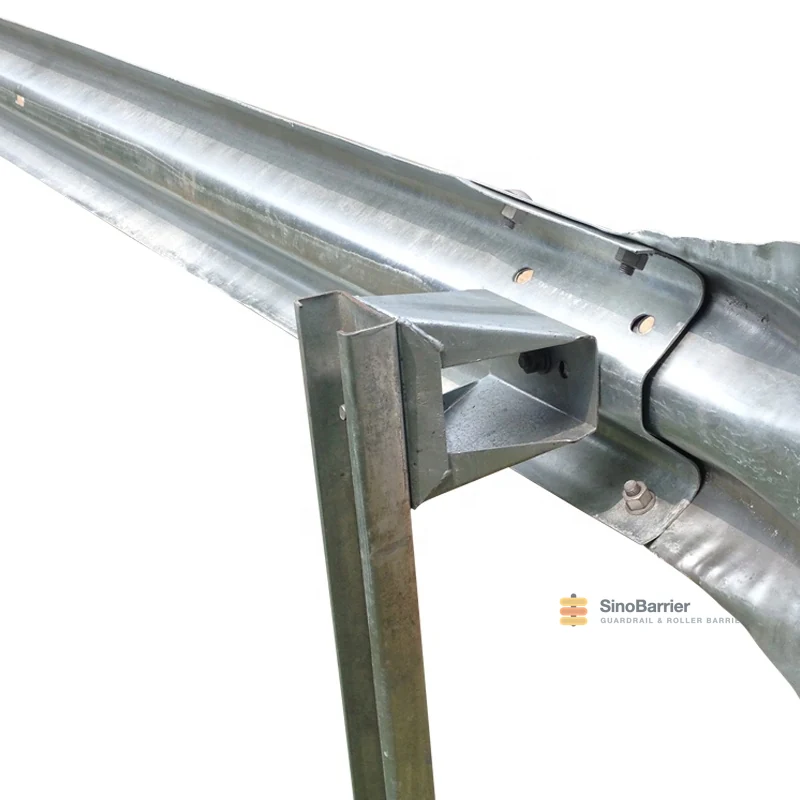

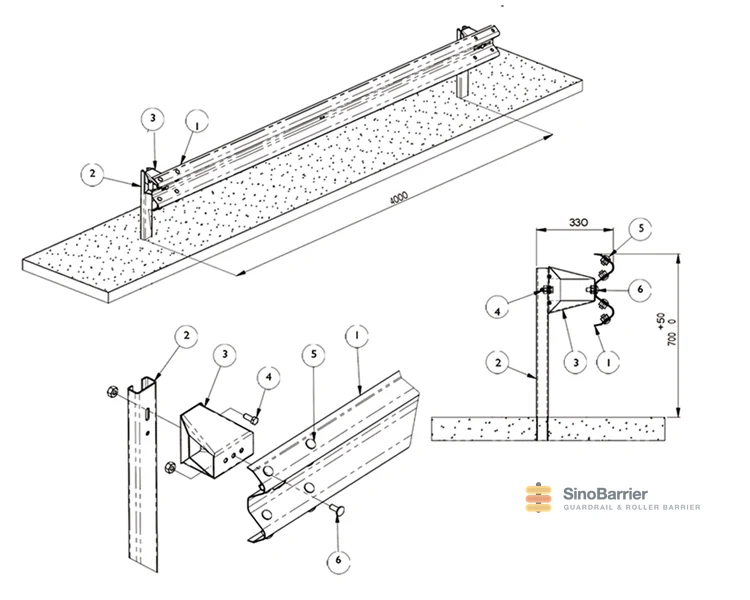

Fitting the box block to a C post
One face of the block bolts to the C-section post and the other carries the guardrail plate, so the same bolt set ties rail, block and post together. The block is made to the post section and the beam you are running, and is drilled to your bolt pattern so it lines up on site. It can be supplied with the posts and bolts as one fixing package.

Standards, sizes and ordering
Box blocks are produced to AASHTO M180, AS/NZS 3845, BS EN 1317 and JT/T 281, and we also weld to a customer drawing. Give us the post section, the block height and the bolt spacing and we quote from our own works. A sample can be sent if you want to check the weld and the galvanizing.

Frequently asked questions
- What is a box block and where does it fit?
- It is the closed, welded block-out used where a W-beam is fixed to a C-section post on a galvanized run. It is punched and formed from steel strip, welded into a box, then galvanized with the rest of the system so the coating runs continuously across the block and the rail.

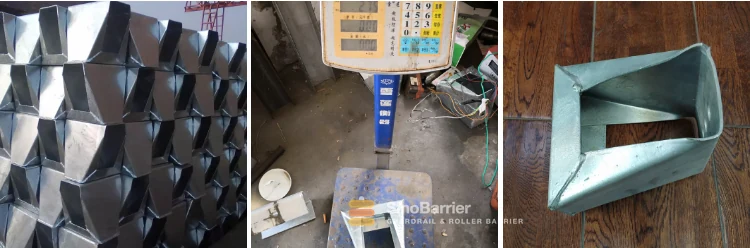

- What coating weight does the box block carry?
- 350 to 600 g/m², matched to the beam and the post in the same shipment. The zinc is applied after welding, so the box seams and the punched holes are covered rather than left as exposed steel.
- How is the box block bolted up?
- The block is punched to the same bolt pattern as the beam it pairs with, so it bolts to the post web on one face and carries the rail on the other. It is supplied loose or pre-assembled with bolts and washers, which cuts the loose-part count on site.
- Why use a closed box block rather than an open one?
- A closed box is stiff in every direction, so it suits posts that take load from more than one angle and runs where the block also carries the bolt-through fixing for the rail. Those are the common conditions on the heavier galvanized details.
Key features
- Box, H, U, C, F and trapezoidal sections plus offset blocks
- Holds the beam at the offset it was crash-tested at
- Hot-dip galvanized to AASHTO M180 with the matching beam
- Punched to the same bolt pattern as the beam it pairs with
- Supplied loose or pre-assembled with bolts and washers
Where it is used
- Beam-and-post barrier runs
- Bridge decks and narrow offsets
- Median and shoulder installations
- Alignment offsets at transitions
- Guardrail repair and replacement
- Curved and sloped sections
