AASHTO M180

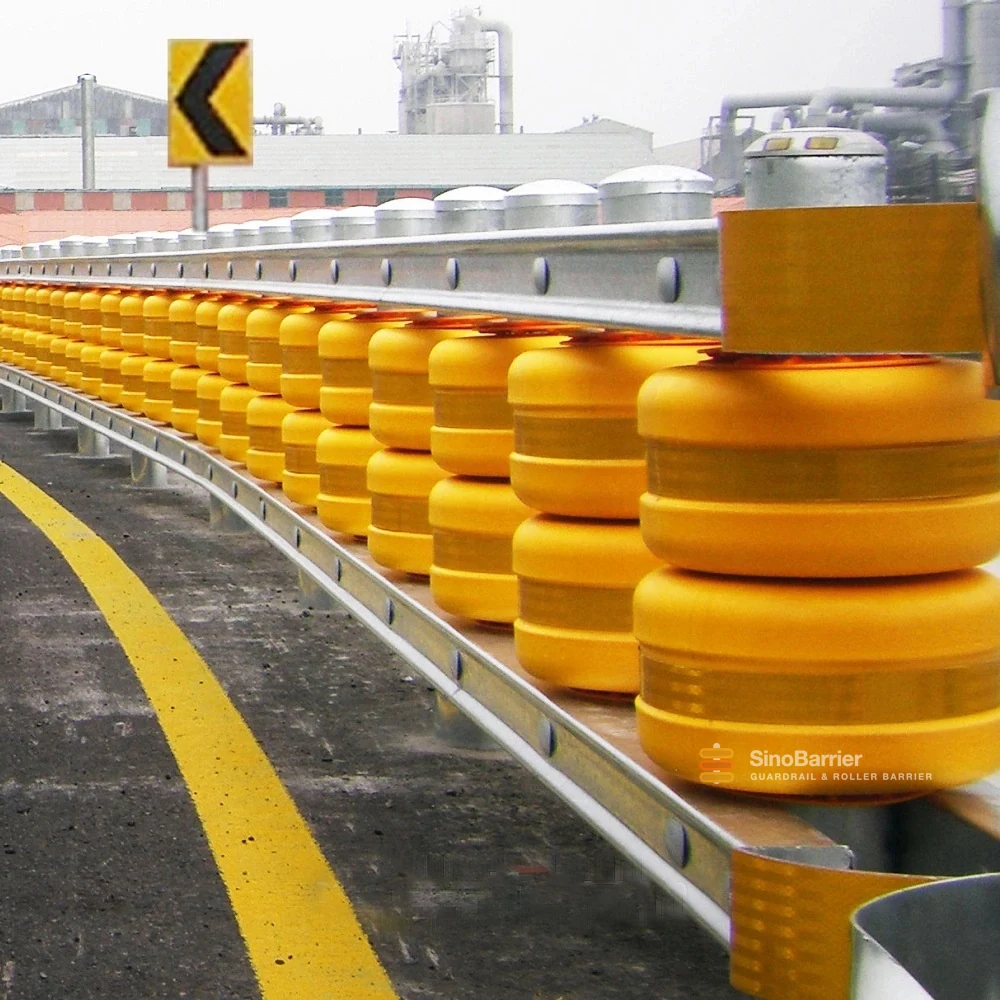

Rotary Crash Barrier
Part of the Safety Roller Crash Barrier range · Roller Barrier.
Model: H250 × φ350 roller

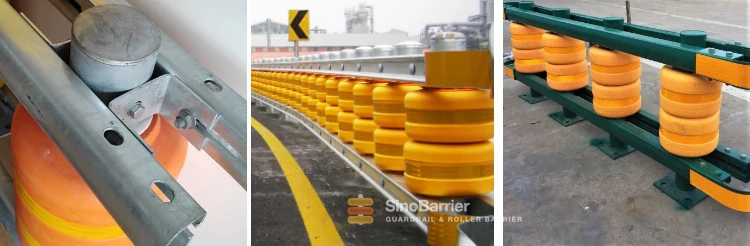

The rotary crash barrier is the coupled-roller edition of the same principle: EVA barrels on a hot-dip galvanized frame, a wider terminal and a rebuildable casing so a struck section is replaced without re-posting the line. Products Description safety roller barrier is a fixture that prevent drivers and passengers from fatal accidents by not only absorbing shock energy but also converting shock energy into rotational energy.It is designed to effectively absorb shock and lead…
- Standard AASHTO M180 / EN 1317 / MASH TL4
- Material EVA/Polyurethane for barrel,and Q235/Q345 for guardrail
- Surface Hot-dip galvanized, ≥ 550 g/m²
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights
Technical specification
| Roller | H250xφ350mm,H500xφ350,request |
| Post | φ140x2150x4.5 |
| Cross Beam | 100x80x4.0x5000/5600/6000/7000 |
| Turning Circle | φ182xφ145×2.0mm |
| Casing | φ167x480x8.0 |
| Terminal | 560*310*4.0 |
| Square buckle | 46x64x4.0mm |
| Bolts&Nuts | M20x60/120/140mm |
| Post spacing | 700 mm or 1000 mm or custom |
| Material | EVA/Polyurethane for barrel,and Q235/Q345 for guardrail |
| Operating temperature | -60℃~70℃(-76℉~158℉) |
| Crash test | MASH TL4 — full test matrix (Test 4-10 / 4-11 / 4-12) |
Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description

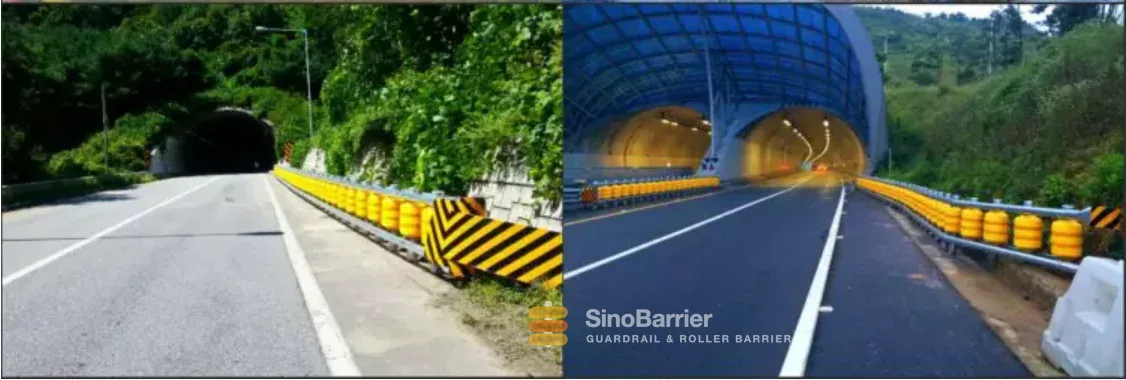

Rotary crash barrier: where it is used
The rotary crash barrier is the safety barrier that uses rotating cylinders instead of a fixed rail. The rollers spin on impact, turning the vehicle instead of stopping it dead, which is why the system is used on curved medians, ramps, tunnel mouths and mountain roads where a rigid barrier would either let a vehicle through or throw it back into traffic. It is also known as a roller barrier, a rolling barrier or a drum barrier.

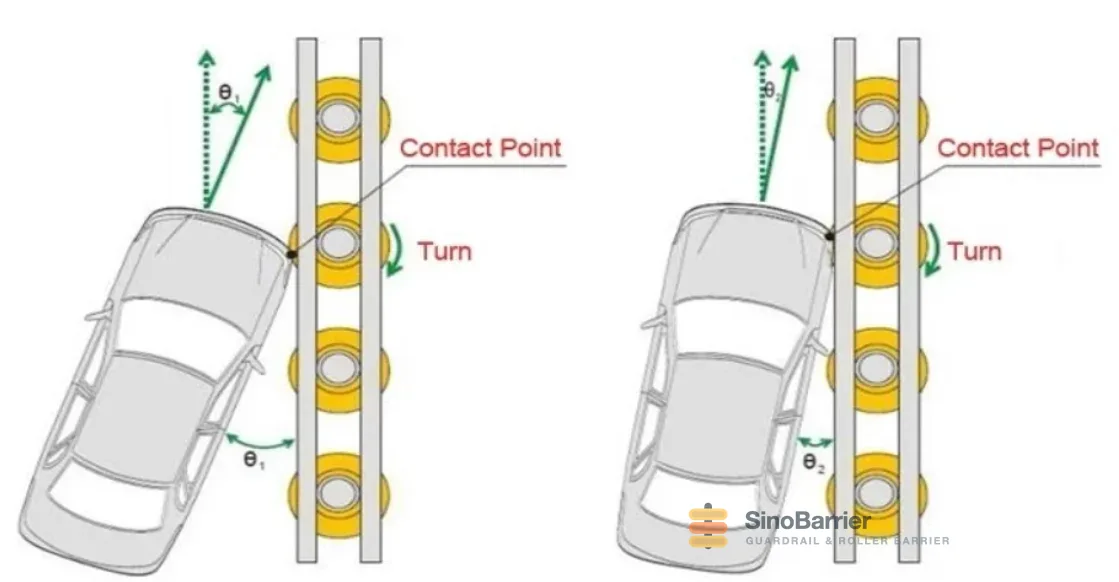

How the rollers redirect a vehicle
Each roller is assembled from EVA and polyethylene on a galvanized steel post, and the barrel turns freely on its axle. When a vehicle strikes the line, the rollers rotate and convert part of the impact energy into rotation, then steer the vehicle back along the barrier rather than letting it break through. The elasticity of the roller compound gives the system its restoring force, so the barrier returns to shape after a light impact and can be repaired roller by roller after a heavy one.
Making the roller
The roller takes EVA as its main material, with around 17 auxiliary materials including PE and the related additives, compounded to give the elasticity the system depends on. A reflective strip runs round the barrel so the barrier is visible at night, and the steel parts are treated with the same hot-dip galvanizing as the posts and beams. Rollers are made in the standard diameters and can be supplied as spares for a run already in service.

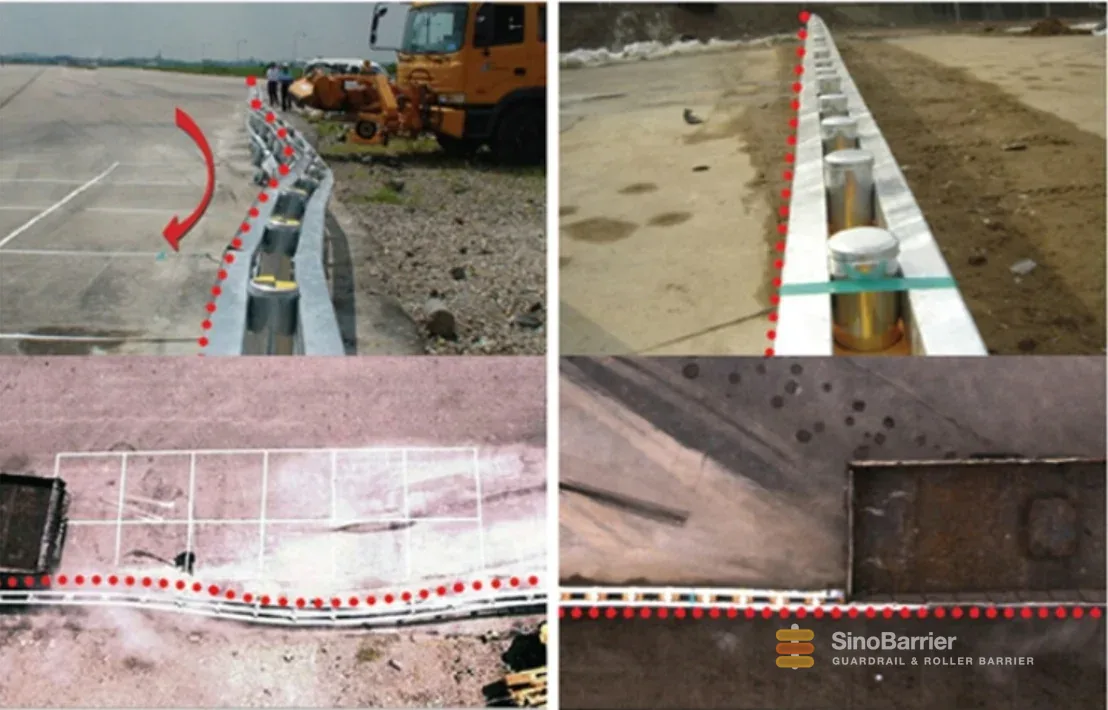

MASH TL4 crash testing
This roller barrier is crash-tested to MASH TL4 for longitudinal barriers, and it passed the full test matrix that the level requires. The test documentation covers the barrier at the standard post spacing and roller diameter, and is supplied with every order so the client can show the barrier meets the level they specified.

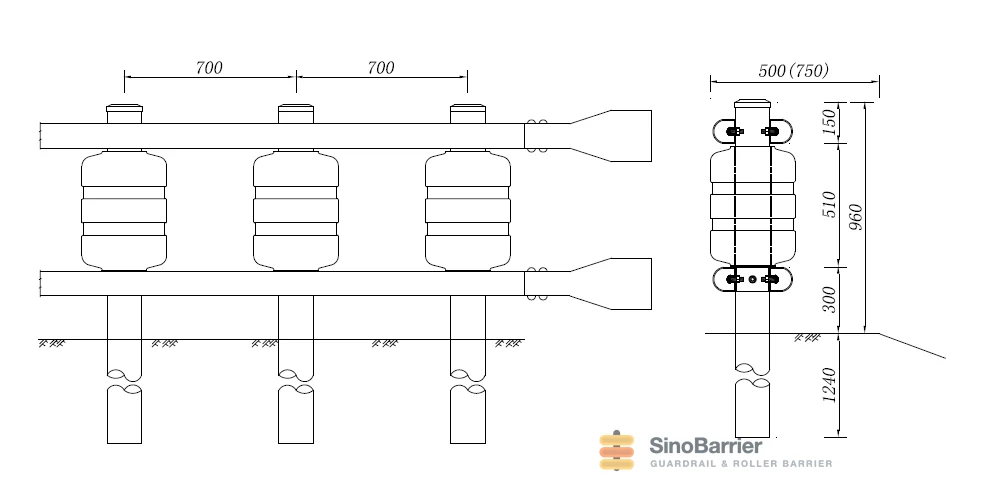

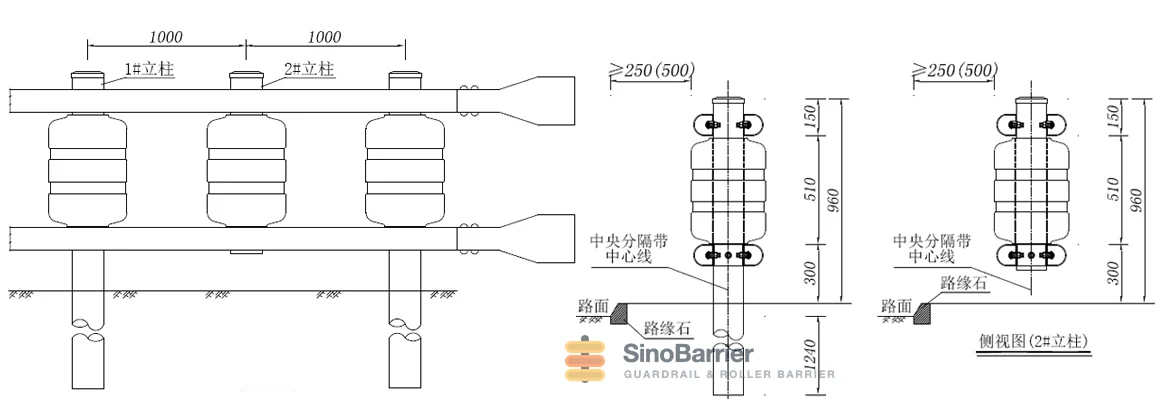

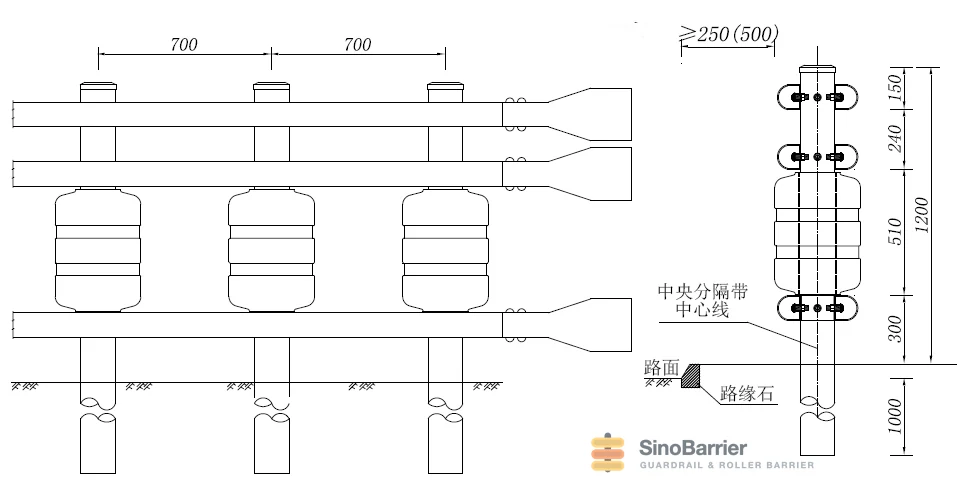

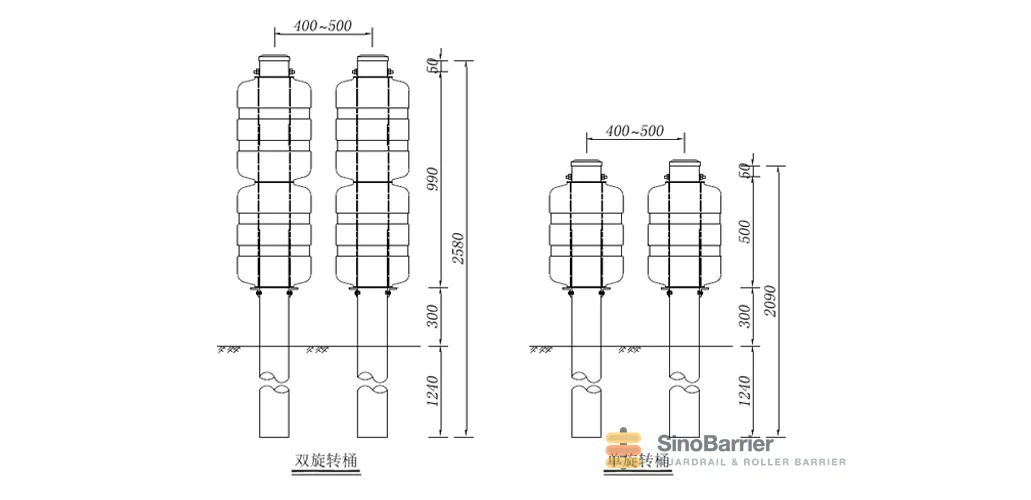

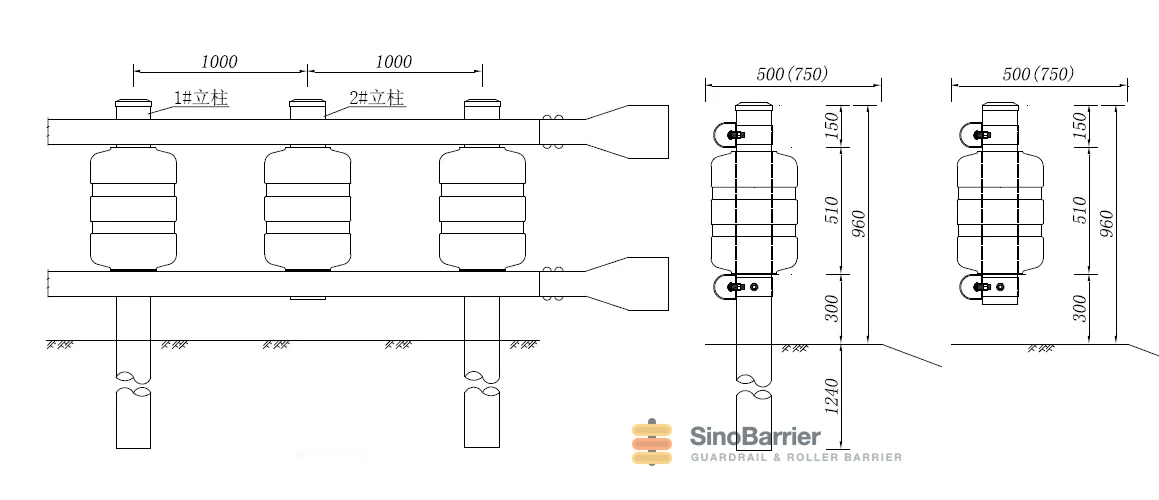

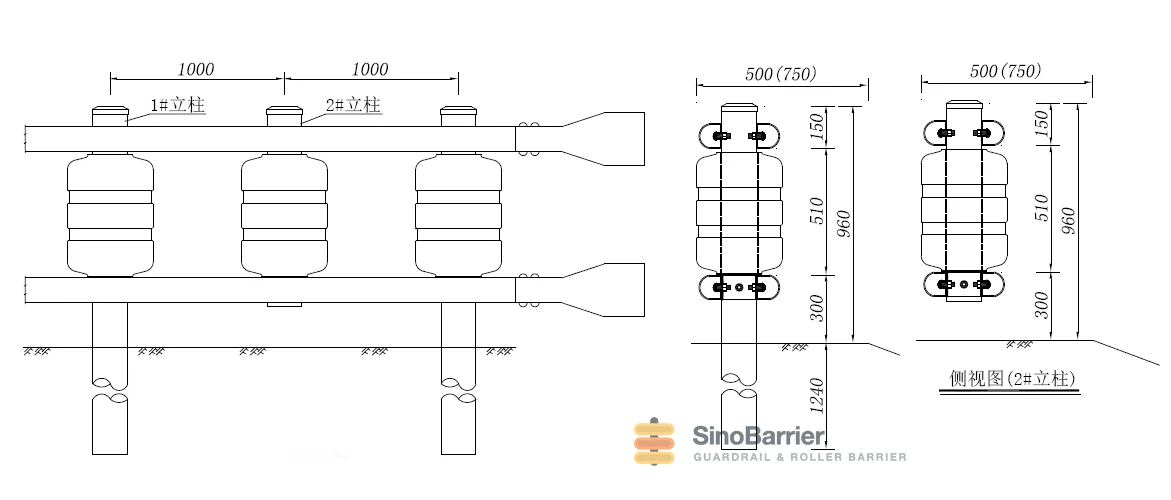

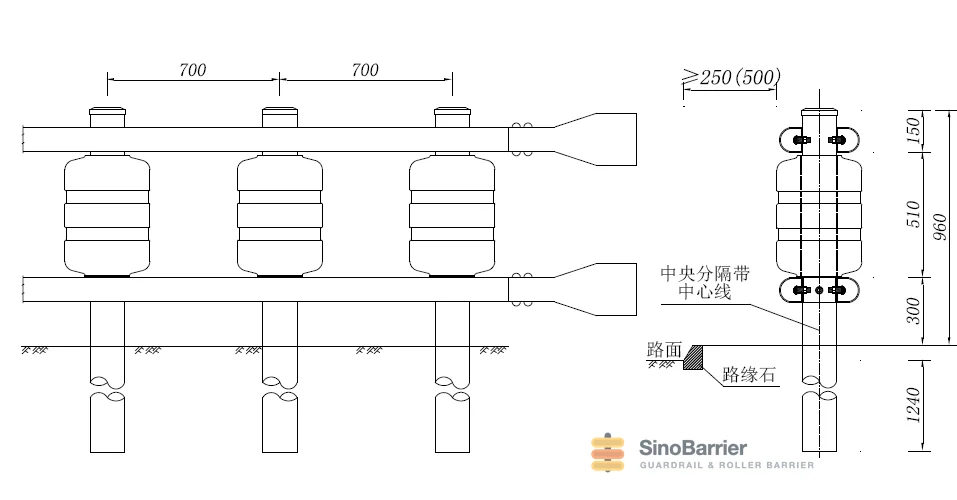

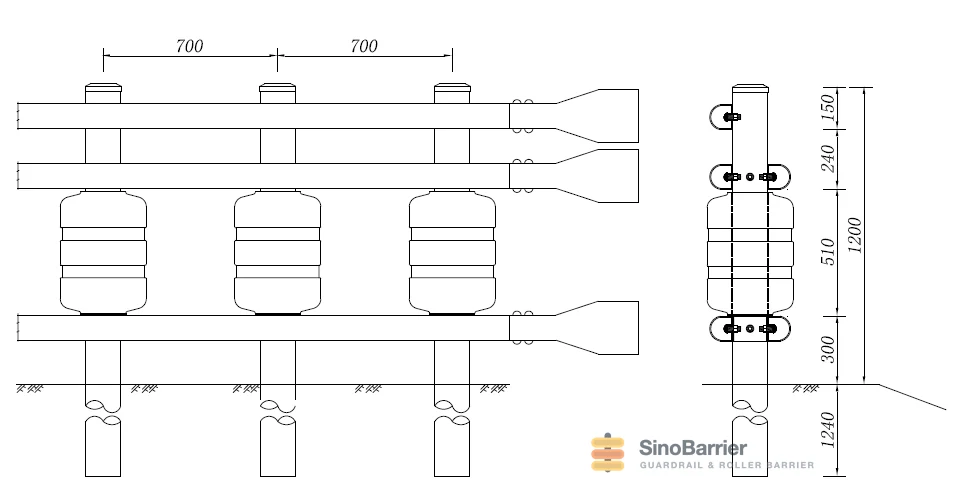

Product parameters

RG-SB-1 Safety Roller Crash Barrier

RG-SA Safety Roller Crash Barrier

RG-SB-2 Safety Roller Crash Barrier

RG-SB-3 Safety Roller Crash Barrier

RG-SBm-1 Safety Roller Crash Barrier

RG-SAm Safety Roller Crash Barrier

RG-SBm-2 Safety Roller Crash Barrier

End rotation Safety Roller Crash Barrier

Features of Safety Roller Barrier
- Reduce speed by stopper board
- Guide reflective leads a driver to drive safely
- Recyclable material (eco-friendly)
- Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
- Minimize fatal damage of people and vehicles by absorbing collision shock
- Reduce costs in repairing and maintenance due to Roller’s resilience.
- Stopper boards help prevent larger accidents by slowing down Roller’s spin
- Can be used for many years, less cost.

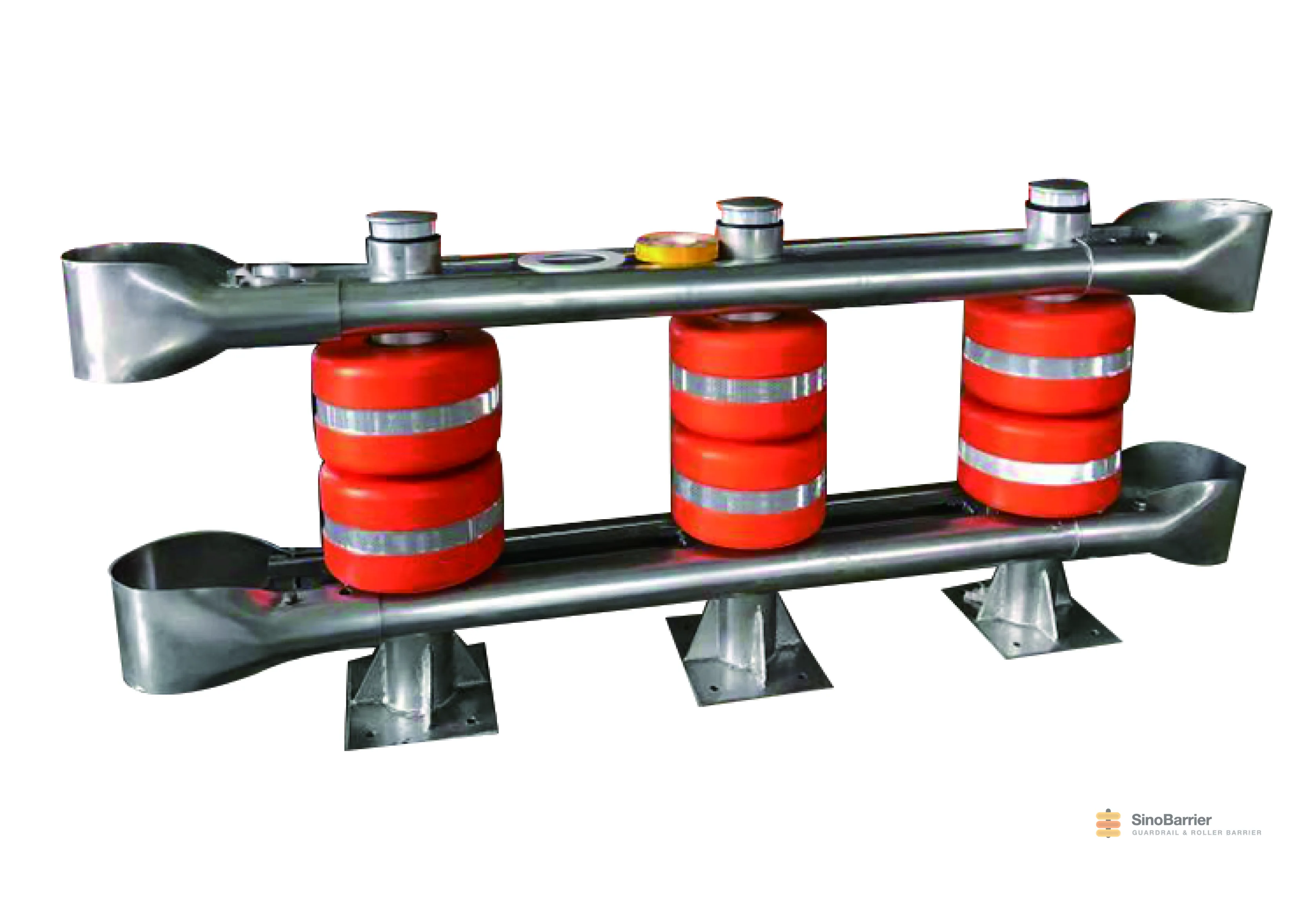

Manufacturing Technique
The rotary anti-collision guardrail is a kind of road guardrail which USES the rotary barrel as the main medium. The rotary barrel can rotate under the impact force, and then drive the vehicle to complete the turning recovery. The rotary anti-collision guardrail is a semi-rigid guardrail

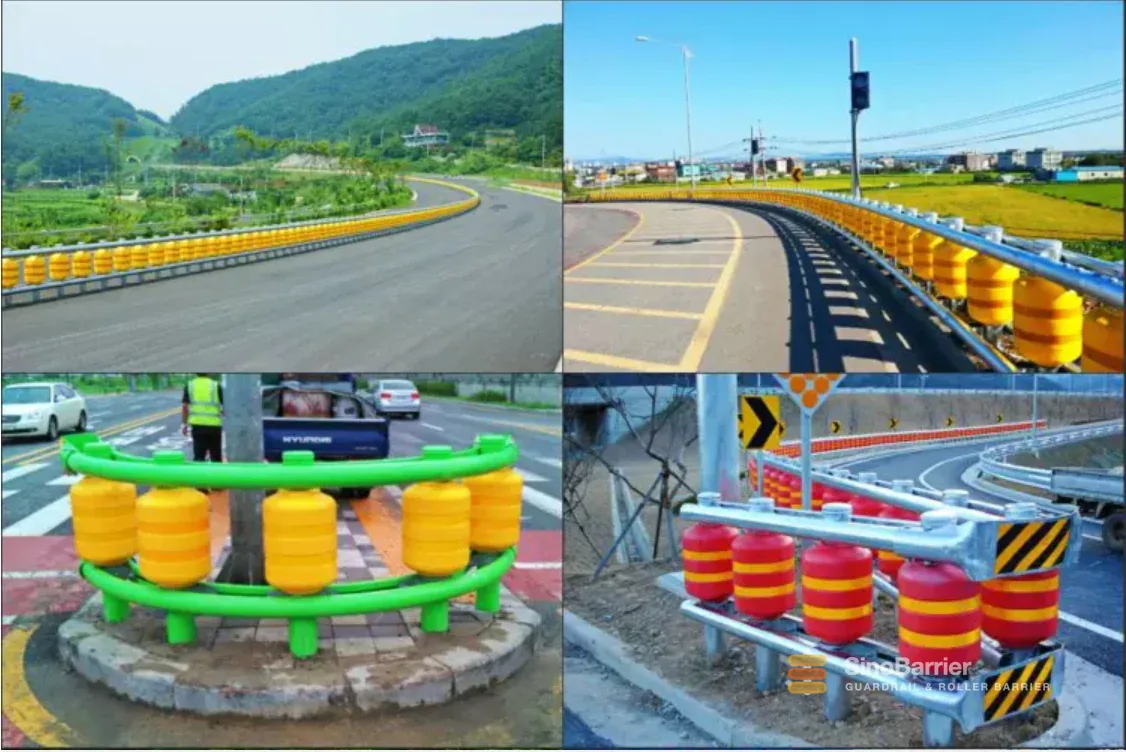

Installation Instructions


- Curved Median Strip
- Curved Ramp
- Diverging Point
- Curved Tunnel
- Curved Downhill
- Passage Intersection
- School Zone
- Danger Zone etc.
Frequently asked questions
- How does the rotary barrier differ from a conventional guardrail?
- It uses rotating cylinders instead of a fixed rail. The rollers spin on impact and turn the vehicle rather than stopping it dead, which is why the system is used on curved medians, ramps, tunnel mouths and mountain roads where a rigid barrier would either let a vehicle through or throw it back into traffic.
- What is the anti-corrosion performance?
- The steel frame, posts and cross beams are hot-dip galvanized with an anti-corrosion coefficient about three times that of an ordinary guardrail, and the barrel is EVA and polyurethane, which does not corrode. The system operates from −60 °C to 70 °C.
- What are the main components?
- Rollers at H250 × φ350 mm or H500 × φ350 mm, φ140 × 2150 × 4.5 mm posts, a 100 × 80 × 4.0 mm cross beam in 5000 to 7000 mm lengths, a φ182 × φ145 × 2.0 mm turning circle, a φ167 × 480 × 8.0 mm casing and M20 × 60/120/140 bolts, with post spacing of 700 or 1000 mm or to your drawing.
- Is the rotary barrier crash tested?
- Yes. The configuration is verified to MASH TL4 across the full test matrix, Test 4-10, 4-11 and 4-12, the same programme as the safety roller barrier. It is supplied as a complete kit of rollers, frame, posts and anchors.
Key features
- Rotating EVA / PU rollers redirect the vehicle instead of stopping it
- Crash-tested configurations to MASH TL4
- Hot-dip galvanized steel frame, posts and cross beams
- Rebuildable after impact — replace only the damaged roller
- Supplied as a complete kit: rollers, frame, posts and anchors
Where it is used
- Sharp curves and high-risk bends
- Tunnel portals
- Median openings and crossovers
- Bridge approaches
- Toll plazas and gantries
- Airport aprons and service roads
Not sure which specification fits?
Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
