AASHTO M180

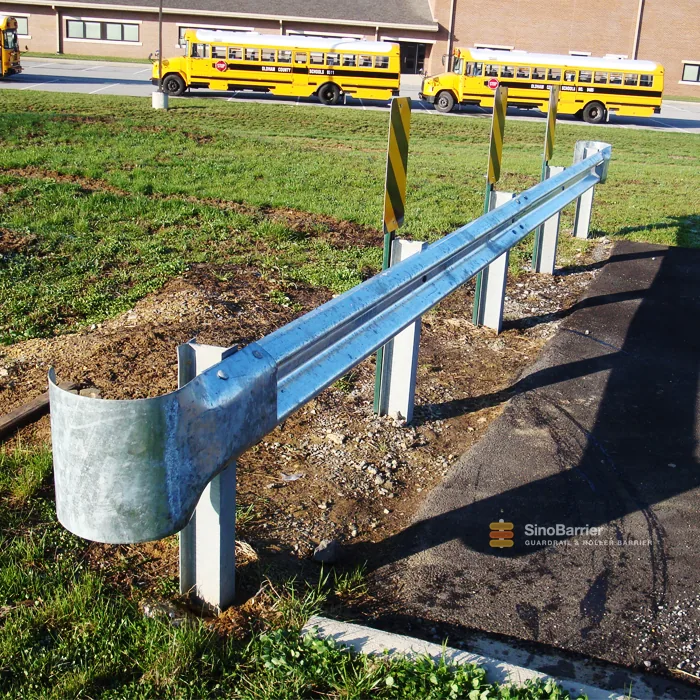

Galvanized W-Beam Guardrail
Part of the W-Beam Guardrail range · Highway Guardrail.
Model: W-Beam / 308–315 mm
Galvanized W-beam panels for roadside barrier systems. Send your approved drawing to confirm dimensions, steel grade, hole pattern, zinc coating and matching components.
- Standard AASHTO M180 / EN 1317 / AS/NZS 3845-1999
- Material A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR
- Surface Hot-dip galvanized
- Thickness Class A: 2.67 mm; Class B: 3.43 mm
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights
Technical specification
| Parameter | Value |
|---|---|
| Profile | W-beam |
| Panel length | 2320 / 3320 / 4128 / 4130 / 4318 / 4320 / 7938 mm |
| Section width | 308 / 310 / 311 / 312 / 315 mm |
| Base metal thickness | 2.5 / 2.6 / 2.67 / 2.7 / 2.75 / 2.76 / 2.8 / 3 / 4 / 5 / 10 mm |
| Nominal base thickness | Class A: 2.67 mm; Class B: 3.43 mm |
| Steel grade | A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR |
| Zinc coating mass | Type I: 550 g/m²; Type II: 1100 g/m²; 300 / 550 / 610 / 900 / 1100 / 1220 g/m² |
| Approximate coating thickness | 300 g/m² ≈ 40 µm; 550 g/m² ≈ 80 µm; 610 g/m² ≈ 85 µm; 1100 g/m² ≈ 160 µm; 1220 g/m² ≈ 170 µm |
| Surface treatment | Hot-dip galvanized |
| Standard | AASHTO M180 |
| Mechanical properties | Re ≥ 355 MPa; Rm ≥ 495 MPa; A50 ≥ 15%. For the specified high-strength steel grade; verify the grade and batch mill certificate. |
Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification. Confirm the standard edition, coating type, measurement area and test method on the order. The micrometre figures are approximate catalogue pairings, not a sum across two faces or an acceptance test.
Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description

Dimensions and coating requirements
View the main specification table for the catalogue range. Confirm the panel length, profile, base-metal thickness and hole pattern together against the approved drawing. The listed options are not interchangeable system configurations.
State the applicable standard edition, zinc coating requirement, measurement basis and acceptance method. Any micrometre values in the catalogue are approximate references rather than acceptance criteria. Confirm fastener requirements separately from the beam specification.

Installation and handling

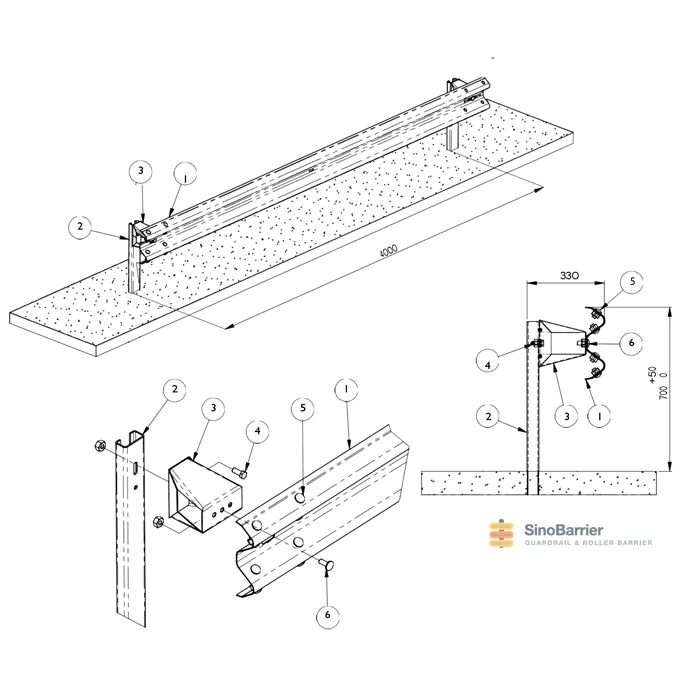

Use the installation details for the selected system, including post layout, mounting height, splice arrangement, connections and terminal treatment. Review damaged coatings or components against the applicable inspection and repair instructions before installation.

Ordering panels or a complete run
State whether you need panels only or a complete run with posts, spacers, terminals and fasteners. Include quantities, drawing references and destination port. For system selection, see the W-beam guardrail guide.
Compare the guardrail standards and material options, or review the AASHTO M180 information before sending your requirements.
Frequently asked questions
- Which dimensions are available?
- Use the main specification table for the catalogue range. Confirm the exact combination and hole pattern against your approved drawing.
- Which zinc coating should I specify?
- Use the project specification and applicable standard edition. State the coating mass, measurement basis and acceptance method in the order.
- Are posts and fittings included?
- Panels and complete-run quotations have different supply scopes. List the posts, spacers, terminals and fasteners required with your enquiry.
- Can I order other finishes?
- See the PVC-coated and powder-coated product pages for those finishes.
Key features
- Double-wave W profile, cold-rolled to AASHTO M180 / EN 1317 / GB/T 31439
- Hot-dip galvanized with a minimum 550 g/m² (≈80 µm) zinc coating
- Standard 4130 / 4128 / 4320 mm lengths — custom lengths produced to drawing
- Slotted bolt holes absorb thermal movement and simplify field alignment
- Supplied galvanized, powder-coated or PVC-coated for visibility schemes
Where it is used

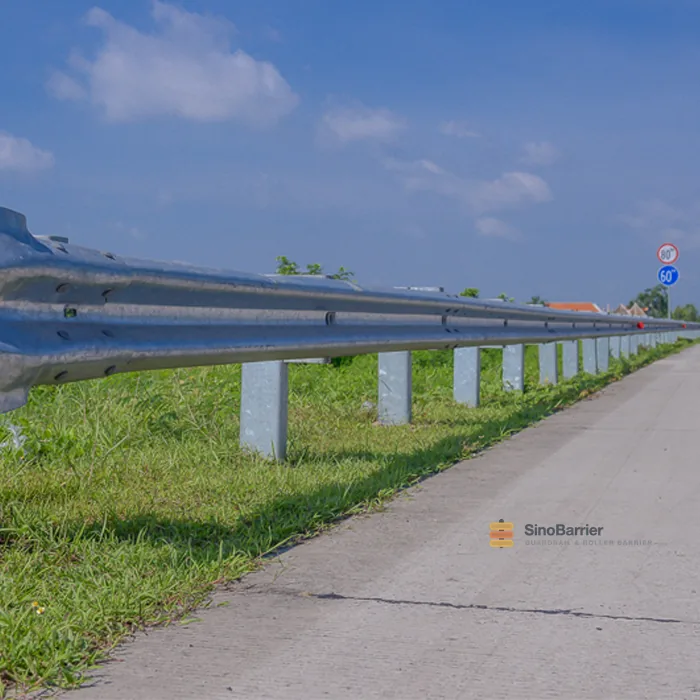

- Highway shoulders and medians
- Bridge approaches
- Interchanges and ramps
- Rural roads and curves
- Car parks and logistics yards
- Road-widening schemes
Complete the system

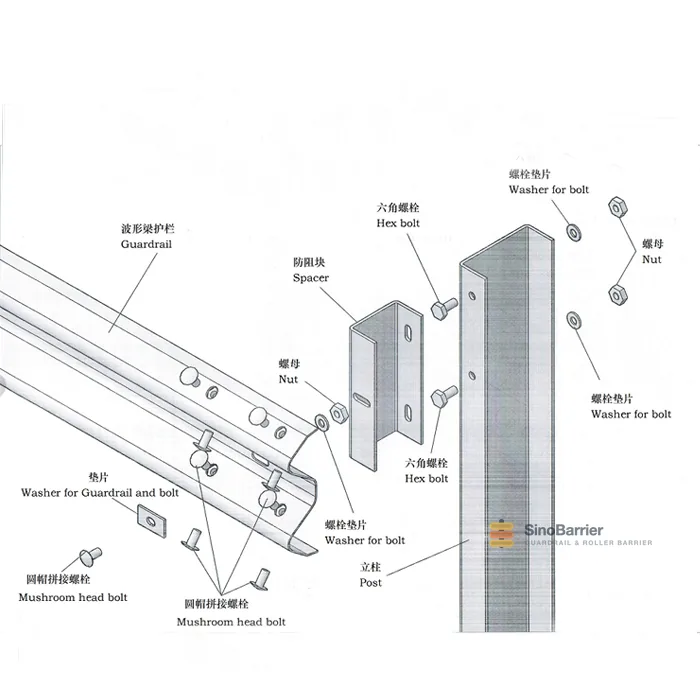

A barrier is supplied as a set. These are the components that go with this item on a typical installation.
Not sure which specification fits?
Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
