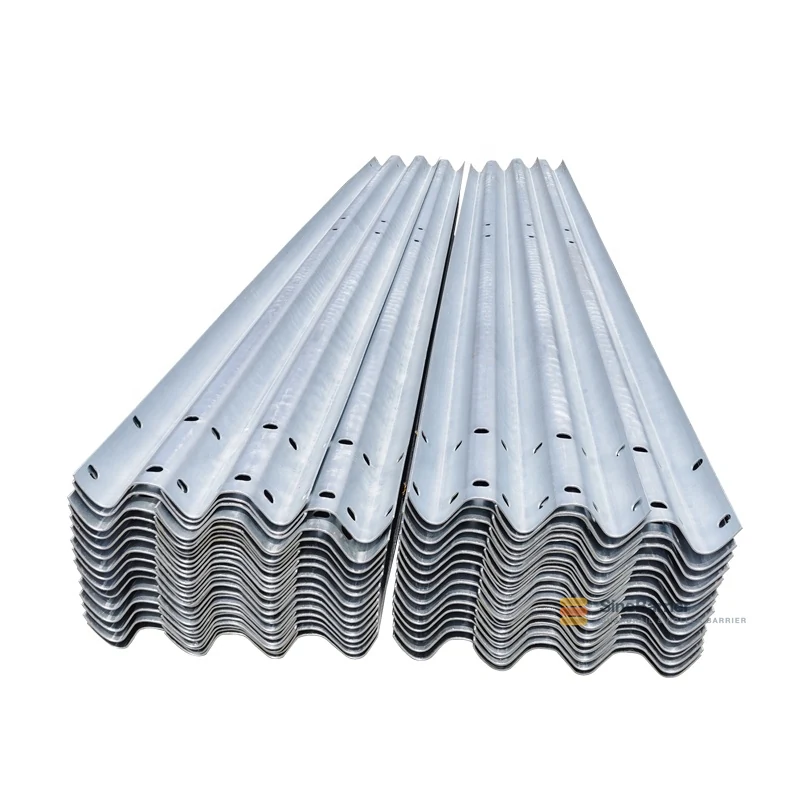

AASHTO M180 Thrie-Beam Highway Guardrail
Part of the Thrie-Beam Guardrail range · Highway Guardrail.
Model: Thrie-Beam / 506 / 508 / 510 mm
Thrie-beam — Panel length: 4120 × 506 × 85 mm / 7920 × 506 × 85 mm; Section width: 506 / 508 / 510 mm; Base metal thickness: 2.76 / 2.8 / 3 / 4 / 4.5 / 5 / 10 mm; Nominal base thickness: Class A: 2.67 mm; Class B: 3.43 mm. Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification. Type I: 550 g/m²; Type II: 1100 g/m²
- Standard AASHTO M180 / EN 1317 / AS/NZS 3845-1999
- Material A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR
- Surface Hot-dip galvanized / powder coated
- Thickness Class A: 2.67 mm; Class B: 3.43 mm
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights

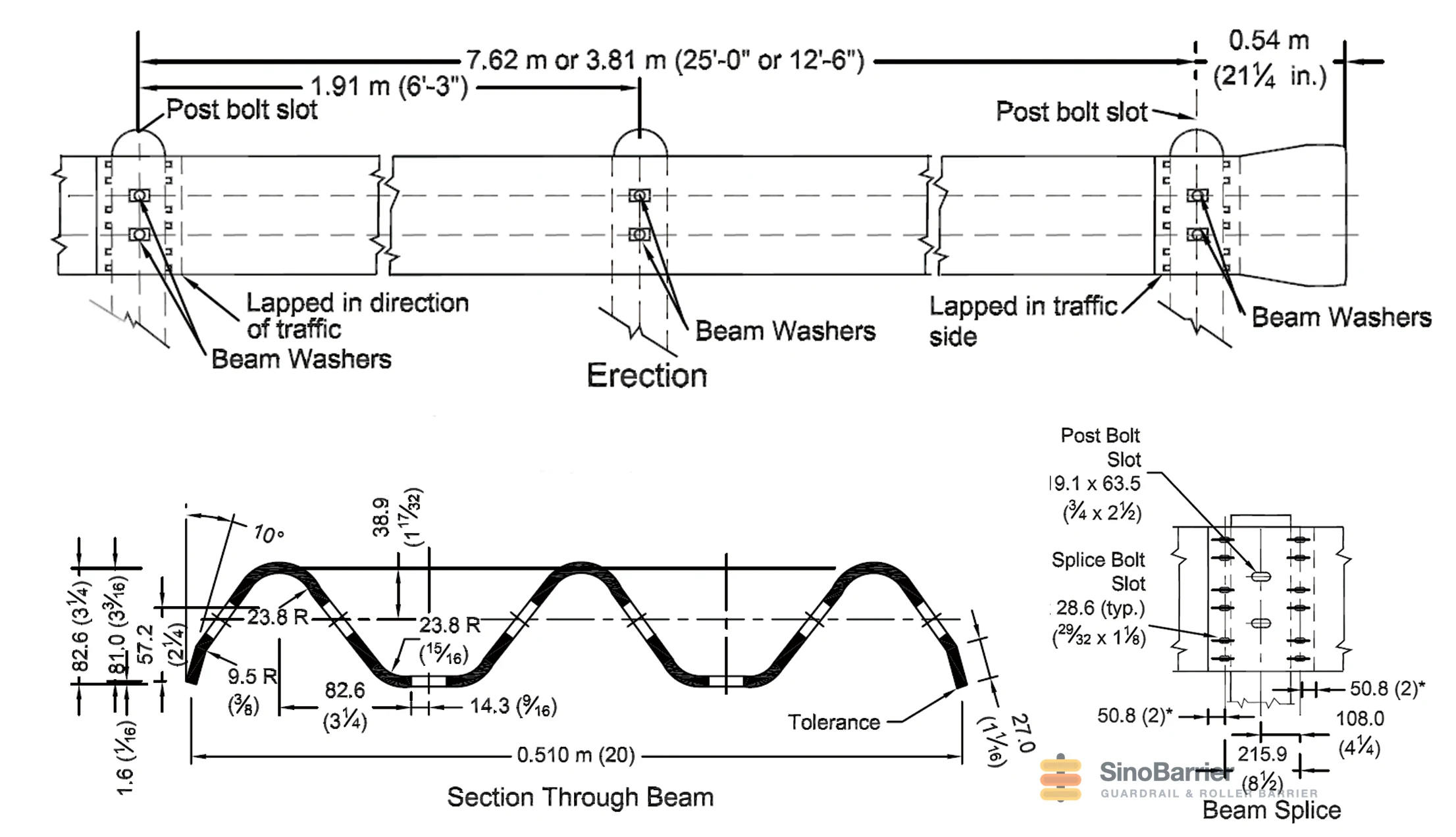

Technical specification
| Parameter | Value |
|---|---|
| Profile | Thrie-beam |
| Panel length | 4120 × 506 × 85 mm / 7920 × 506 × 85 mm |
| Section width | 506 / 508 / 510 mm |
| Panel length — Notes | 2320 / 3320 / 4128 / 4218 / 4318 / 4320 mm |
| Base metal thickness | 2.76 / 2.8 / 3 / 4 / 4.5 / 5 / 10 mm |
| Nominal base thickness | Class A: 2.67 mm; Class B: 3.43 mm |
| Steel grade | A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR |
| Zinc coating mass | Type I: 550 g/m²; Type II: 1100 g/m²; 300 / 550 / 610 / 900 / 1100 / 1220 g/m² |
| Approximate coating thickness | 300 g/m² ≈ 40 µm; 550 g/m² ≈ 80 µm; 610 g/m² ≈ 85 µm; 1100 g/m² ≈ 160 µm; 1220 g/m² ≈ 170 µm |
| Surface treatment | Hot-dip galvanized / powder coated |
| Standard | AASHTO M180 |
| Mechanical properties | Re ≥ 355 MPa; Rm ≥ 495 MPa; A50 ≥ 15%. For the specified high-strength steel grade; verify the grade and batch mill certificate. |
Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification. Confirm the standard edition, coating type, measurement area and test method on the order. The micrometre figures are approximate catalogue pairings, not a sum across two faces or an acceptance test.
Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description

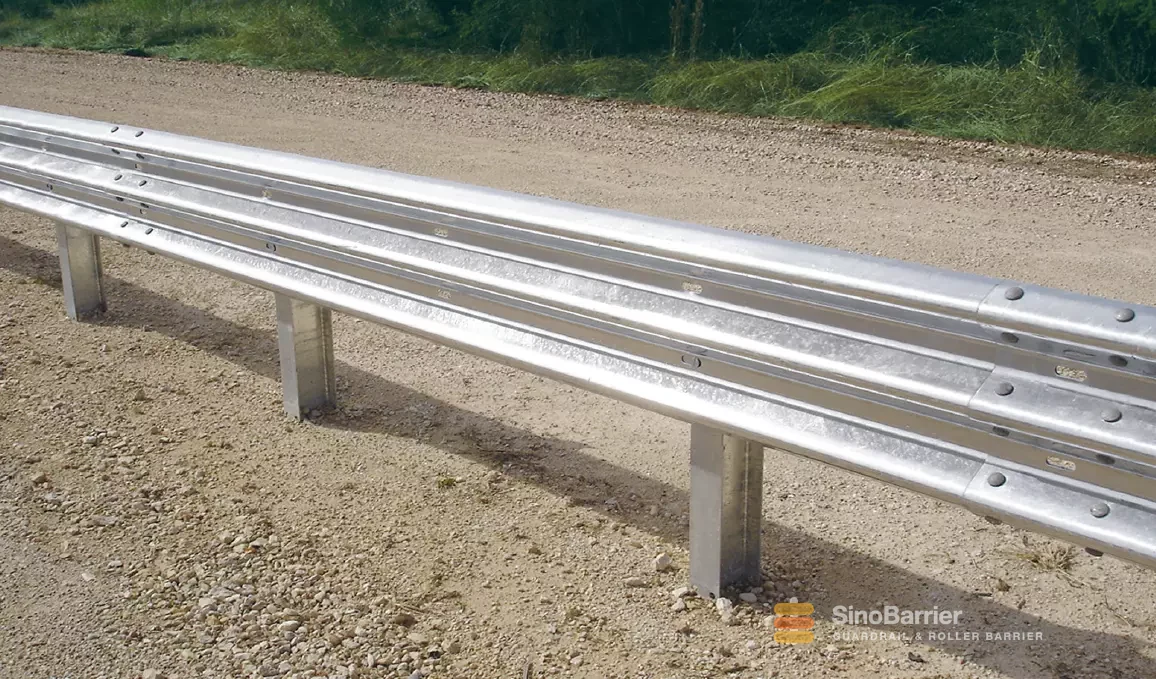

AASHTO M180 thrie-beam guardrail: where it is used
This page covers the thrie-beam rolled and galvanized specifically to AASHTO M180, the American specification for corrugated sheet steel beams for highway guardrail. It is the section ordered for US-funded projects and for export jobs that follow the AASHTO detail. The three-wave profile is used on bridges, ramps and high-speed alignment, and the galvanizing weight is what M180 actually governs.

What AASHTO M180 controls
Zinc coating mass: 300 / 550 / 610 / 900 / 1100 / 1220 g/m². Type I: 550 g/m²; Type II: 1100 g/m². Approximate coating thickness: 300 g/m² ≈ 40 µm; 550 g/m² ≈ 80 µm; 610 g/m² ≈ 85 µm; 1100 g/m² ≈ 160 µm; 1220 g/m² ≈ 170 µm. Confirm the standard edition, coating type, measurement area and test method on the order. The micrometre figures are approximate catalogue pairings, not a sum across two faces or an acceptance test.

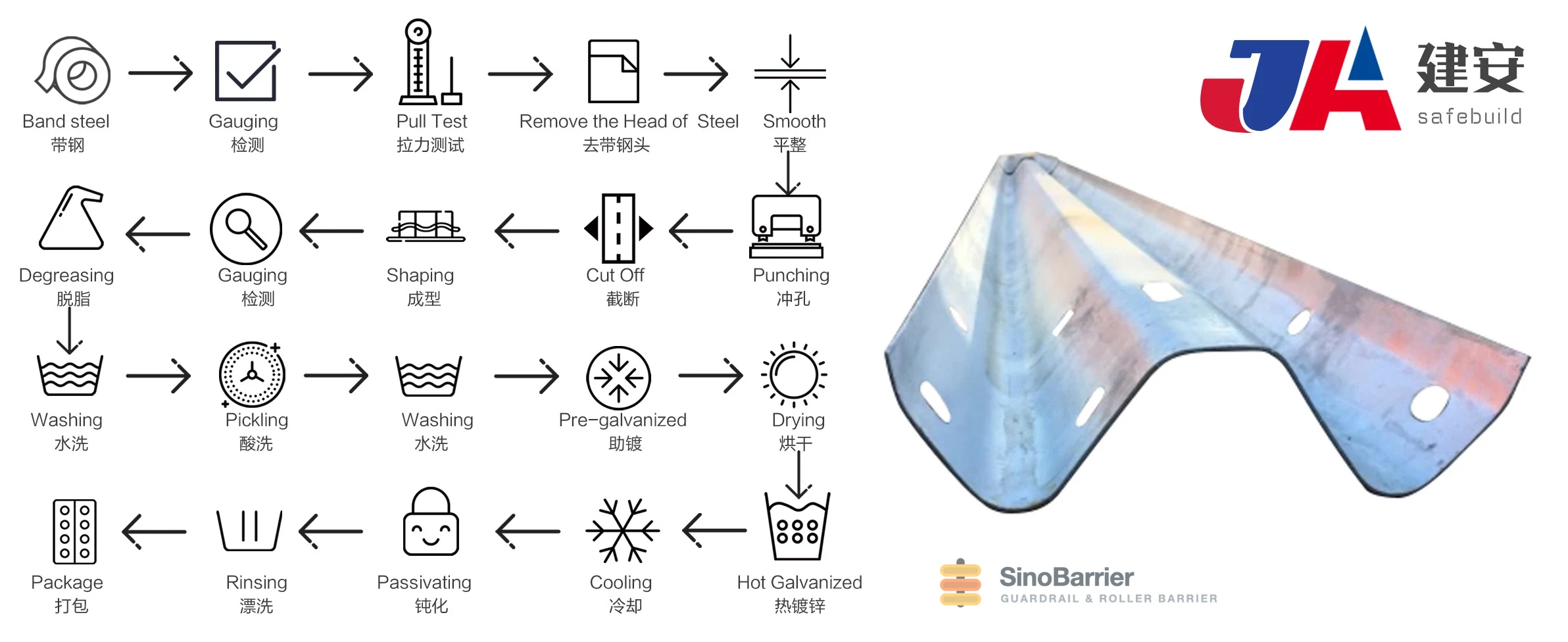

Rolling and fabricating the section
The coil is uncoiled, levelled and roll-formed into the three-wave profile, then cut to length and punched for the bolt holes before galvanizing. Galvanizing after forming means the cut edges are coated too, which is what M180 expects. We roll thrie-beam on the same line as W-beam, so a project using both sections gets consistent material and one set of documentation.

Standards, sizes and ordering
Our M180 thrie-beam is supplied with a mill certificate showing the steel grade and the coating weight, and lengths, hole patterns and end details are made to your drawing. Run lengths are cut to suit the site, and the beam can be shipped with the posts, blocks and bolts for the same run. Ask us for the coating test report with the quotation.
Where a thrie-beam wins over a W-beam section
Both sections are rolled from the same coil and galvanized to the same AASHTO M180 coating, so the difference between them is the profile, not the steel. The thrie-beam carries a third wave, which gives it a deeper section and a higher section modulus at the same nominal thickness. That is why it is ordered where a W-beam would otherwise need a heavier gauge, a shorter post spacing or an added blockout to reach the same containment.
- A deeper three-wave profile than a W-beam at the same steel thickness
- Higher stiffness and durability under repeated minor impacts
- Absorbs more of the impact energy, over a longer length of rail
- Redirects the vehicle back along the road with less lateral travel
- Reads as a deliberate marker where a highway or a bridge deck begins
- Discourages pedestrians from stepping onto the carriageway at the transition
- Reduces the risk of a vehicle skidding off the edge on mountain roads and bridge decks
Where a project runs both sections — thrie-beam on the bridge approach, W-beam on the open alignment — ordering them from the same mill keeps the coating weight, the steel grade and the mill certificate consistent along the whole run.
Frequently asked questions
- What is the difference between Type I and Type II thrie-beam to AASHTO M180?
- Zinc coating mass: Type I: 550 g/m²; Type II: 1100 g/m². Nominal base thickness: Class A: 2.67 mm; Class B: 3.43 mm. Panel length: 4120 × 506 × 85 mm / 7920 × 506 × 85 mm. Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification.
- What steel grade does an AASHTO M180 thrie-beam use?
- Mechanical properties: Re ≥ 355 MPa; Rm ≥ 495 MPa; A50 ≥ 15%. For the specified high-strength steel grade; verify the grade and batch mill certificate. Steel grade: A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR.
- May the beam be galvanized before or after fabrication?
- Both are done. Galvanizing after forming and punching coats the inside of the corrugation and the hole edges, while galvanizing before fabrication suits projects that follow an existing supply chain. The coating weight is the same either way: 550 g/m² minimum, or 1100 g/m² where a heavier coating is written into the specification.
- What documentation comes with an AASHTO M180 order?
- The mill test certificate for the coil, the coating weight report for the galvanizing batch and a dimensional check against the M180 table. That is the package a US-funded project or an AASHTO-detail tender normally asks to see before the shipment leaves the port.
