AASHTO M180

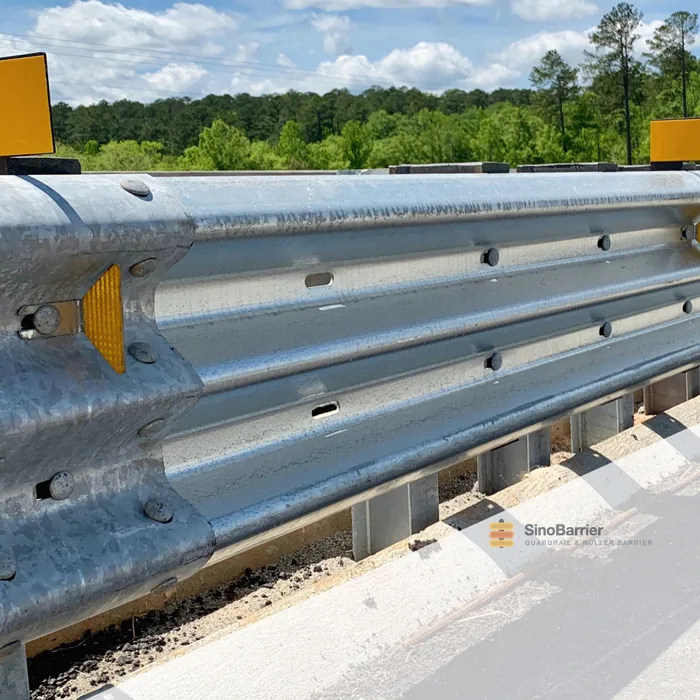

Thrie-Beam Guardrail Panel
Part of the Thrie-Beam Guardrail range · Highway Guardrail.
Model: Thrie-Beam / 506 / 508 / 510 mm
Thrie-beam panels have three corrugations and a deeper profile than W-beam panels. Confirm panel dimensions and matching components against the approved project drawing.
- Standard AASHTO M180 / EN 1317 / AS/NZS 3845-1999
- Material A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR
- Surface Hot-dip galvanized / powder coated
- Thickness Class A: 2.67 mm; Class B: 3.43 mm
- MOQ 1 × 20GP container
- Lead time 15–25 days
- Mill test certificate with every shipment
- Shop drawings and setting-out plan included
- Custom lengths, hole patterns and coating weights
Technical specification
| Parameter | Value |
|---|---|
| Profile | Thrie-beam |
| Panel dimensions (L × W × D) | 4120 × 506 × 85 mm / 7920 × 506 × 85 mm |
| Section width | 506 / 508 / 510 mm |
| Other listed panel lengths — confirm drawing | 2320 / 3320 / 4128 / 4218 / 4318 / 4320 mm |
| Base metal thickness | 2.76 / 2.8 / 3 / 4 / 4.5 / 5 / 10 mm |
| Nominal base thickness | Class A: 2.67 mm; Class B: 3.43 mm |
| Steel grade | A572 / Q345B / HA350 / Q235B / A36 / S355JR / S275JR |
| Zinc coating mass | Type I: 550 g/m²; Type II: 1100 g/m²; 300 / 550 / 610 / 900 / 1100 / 1220 g/m² |
| Approximate coating thickness | 300 g/m² ≈ 40 µm; 550 g/m² ≈ 80 µm; 610 g/m² ≈ 85 µm; 1100 g/m² ≈ 160 µm; 1220 g/m² ≈ 170 µm |
| Surface treatment | Hot-dip galvanized / powder coated |
| Standard | AASHTO M180 |
| Mechanical properties | Re ≥ 355 MPa; Rm ≥ 495 MPa; A50 ≥ 15%. For the specified high-strength steel grade; verify the grade and batch mill certificate. |
Custom dimensions and acceptance requirements are confirmed against the approved drawing and order specification. Confirm the standard edition, coating type, measurement area and test method on the order. The micrometre figures are approximate catalogue pairings, not a sum across two faces or an acceptance test.
Dimensions shown are the standard range. Non-standard lengths, hole patterns and coating weights are produced to order — send your drawing for a confirmation drawing.
Description
Dimensions and components
Use the main specification table for the catalogue dimensions and coatings. Confirm the panel size, steel grade, hole pattern and matching components against the approved drawing. View the specification table.
Layout and installation
Follow the approved project drawing for post spacing, mounting height, connections, transitions and end treatments. Confirm the complete assembly before ordering or installation.
Quotation
For a quotation, include the product type, quantity, required standard and destination port. Email your drawing or bill of quantities if available.
Key features
- Three-wave thrie-beam section for higher containment than a W-beam
- Hot-dip galvanized, minimum 550 g/m² zinc coating to AASHTO M180
- Produced in AASHTO M180, EN 1317 and national transit standards
- Longer effective span between posts reduces post count and install time
- Matched posts, spacers and terminals supplied in the same shipment
Where it is used
- Bridges and viaducts
- Tunnel portals
- High-traffic corridors
- High-speed motorways
- Rail and metro corridors
- Gantries and sign supports
Complete the system
A barrier is supplied as a set. These are the components that go with this item on a typical installation.
Not sure which specification fits?
Tell us the road class, design speed and the standard your client is working to. Our engineer will come back with the section, the coating weight and the post spacing that meet it — and the price for the quantity you need.
